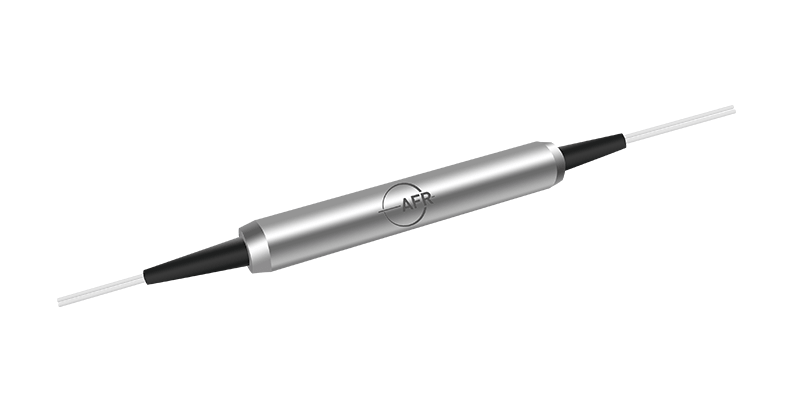

Product Detail
| Key Features | Applications |
| High Extinction Ratio | EDFA |
| Low Insertion Loss | Fiber Optic Instruments |
Specifications
Parameter
Unit
Value
Stage
-
Single Stage
Dual Stage
Center Wavelength (λc)
nm
1310, 1480 or 1550
Operating Wavelength Range
nm
λc ± 15
Configuration
-
2 × 2
Max. Excess Loss
dB
0.9
1.0
Tap Ratio
%
1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10 ± 2.0
Typ. Peak Isolation
dB
40
55
Min. Isolation, λc ± 10 nm, All Polarization States, 23 ℃
dB
30
45
Min. Extinction Ratio, 23 ℃
dB
20
Min. Return Loss
dB
50
Min. Directivity
dB
50
Max. Optical Power (Continuous Wave)
mW
300
Max. Tensile Load
N
5
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
Fiber Type
-
SMF-28 or PM Panda fiber for Tap Port
-
PM Panda fiber for Input 1, Input 2 and Output Port
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2The optical path is aligned to slow axis and fast axis is blocked.
