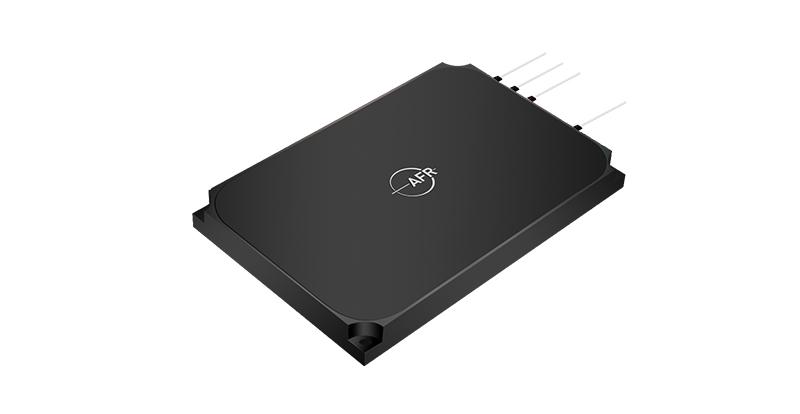

Red, Green, Blue Combiner

The Red, Green, Blue Combiner enables three primary colors in the visible wavelength region to be combined. The combiner offers very low insertion loss and excellent environmental stability.

Inquiry now Download

Product Detail

Key Features	Applications
Excellent Environmental Stability	Fiber Laser
Low Insertion Loss	Fiber Optic Instruments

Specifications
Parameter	Unit	Value
Center Wavelengths (λc)	nm	635 (R)/532 (G)/488 (B) or Specify
Typ. Insertion Loss, Red, Green, Blue Input to Output, λc	dB	0.8
Max. Insertion Loss, Red, Green, Blue Input to Output, λc¹	dB	1.2
Thermal Stability	dB/℃	≤ 0.005
Min. Return Loss²	dB	50
Min. Directivity	dB	50
Max. Optical Power³	mW	100
Fiber Type	-	Nufern 460-HP Fiber
Operating Temperature	℃	- 40 to + 75
Storage Temperature	℃	- 40 to + 85

¹IL is 1.5 dB higher for each connector added.

²RL is 5 dB lower for connector added.

³The Optical Power is 50 mW only for connector added.
