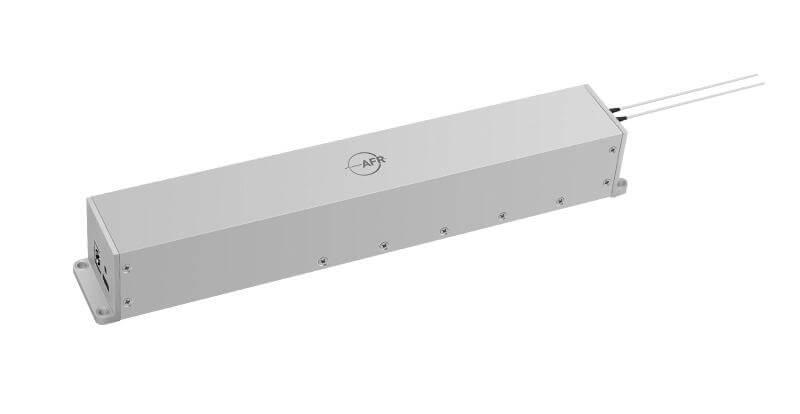

Optical Delay Line with Driver

Key Features

Applications

Excellent Repeatability

Optical Coherence Tomography

Driver Integrated Inside, RS-232 Standard

Test Instrumentation Applications

Specifications

 Parameter

Unit

Value

 Center Wavelength (λc)

nm

1310 or 1550 or 1060

 Operation Wavelength

nm

λc ± 50

 Optical Delay Range

ps

0 - 500 ps Continuous

 Zero Point Delay Offset¹

ps

~ 440

 Optical Delay Resolution²

-

0.76 μm  or 2.5 fs per encoder count

 Repeatability³

μm

5

 Max. Move Rate

mm/s

8

 Max. Insertion Loss

dB

1.2

 Max. Insertion Loss Variation

dB

≤ 0.5

 Max. Temperature Dependent Loss

dB

≤ 0.25

 Max. Wavelength Dependent Loss

dB

≤ ± 0.3

 Max. Polarization Dependent Loss

dB

0.1

 Min. Extinction Ratio (for PM model)

dB

20

 Min. Return Loss

dB

50

 Max. Optical Power Handling (Continuous Wave)

mW

300

 Electrical Interface

-

DC 5V3A

-

USB

 Operating Temperature

 °C

0 to + 40

 Storage Temperature

 °C

- 40 to + 60

 Fiber Type

-

Singlemode or PM Panda fiber
