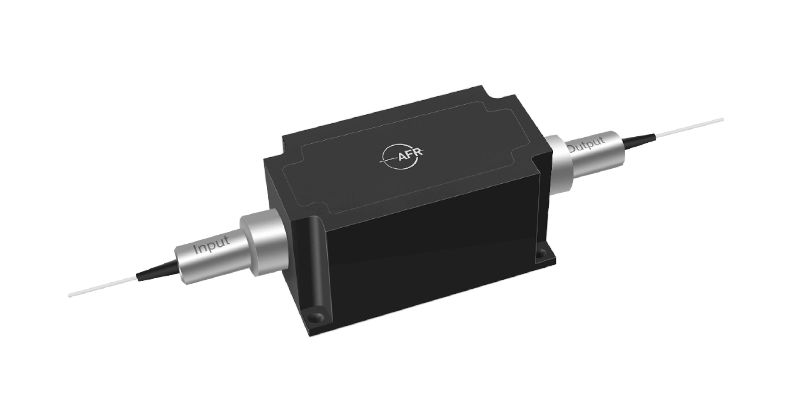

850 nm Polarization Maintaining Isolator

The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. This fiber isolator is ideal for fiber laser and instrumentation applications.
  • Product Detail

Key Features

Applications

Low Insertion Loss

Fiber Lasers

High Isolation

Fiber Optic Instruments



Specifications

 Parameter

Unit

Value

 Operating Wavelength (λop)

nm

850

 Typ. Insertion Loss, 23 ℃

dB

1.3

 Max. Insertion Loss, 23 ℃

dB

1.6

 Typ. Peak Isolation

dB

26

 Min. Isolation, λc, 23 ℃

dB

22

 Min. Extinction Ratio

dB

18

 Min. Return Loss

dB

45

 Max. Optical Power (Continuous Wave)

mW

500

 Fiber Type

-

PM850 Panda

 Operating Temperature

+ 10 to + 50

 Storage Temperature

0 to + 60


 1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
