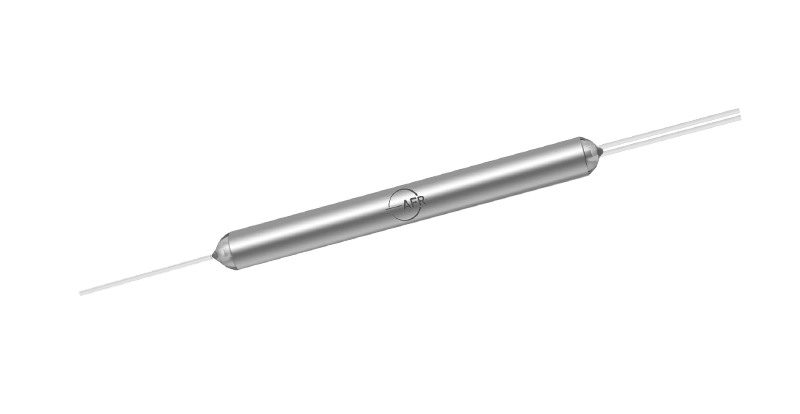

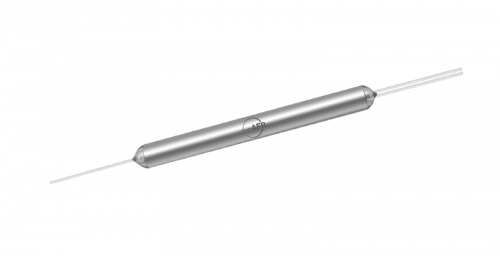

980/1550 nm Singlemode WDM

The Singlemode Wavelength Division Multiplexer combine or separate light at different wavelengths. They offer very low insertion loss, low polarization dependent loss, high isolation and excellent environmental stability. These components have been extensively used in EDFA, CATV, WDM networks and fiber optic instruments.

Inquiry now Download

Product Detail

Key Features	Applications
High Isolation	EDFA
Low Insertion Loss	WDM Networks
Low Polarization Dependent Loss	Fiber Optic Instruments

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	980/1550
Operating Wavelength	nm	λc ± 15
Min. Isolation¹	dB	20
Max. Insertion Loss¹	dB	0.15
Max. Polarization Dependent Loss¹	dB	0.1
Thermal Stability	dB/℃	≤ 0.002
Min. Return Loss²	dB	60
Min. Directivity	dB	60
Max. Optical Power (Continuous Wave)	mW	300
Operating Temperature	℃	- 40 to + 75
Storage Temperature	℃	- 40 to + 85

¹Test at central wavelength only. IL is 0.5 dB higher for each connector added.
²RL is 5 dB lower for connector added.
