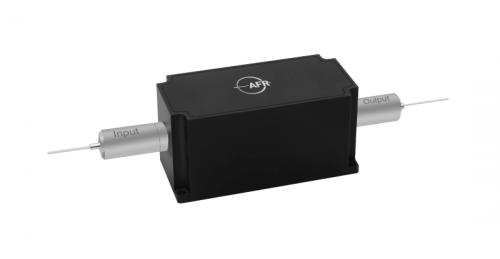

830 nm Isolator

The 830 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber laser and instrumentation applications.
  • Product Detail

Key Features

Applications

Low Insertion Loss

Fiber Lasers

High Isolation

Fiber Optic Instruments


Specifications

 Parameter

Unit

Value

 Grade

-

Grade P

Grade A

 Center Wavelength (λc)

nm

830 or specify

 Max. Polarization Dependent Loss

dB

0.15

0.2

 Min. Isolation, λc, @ All Polarization States, 23 ℃

dB

22

20

 Typ. Insertion Loss, 23 ℃

dB

1.3

1.6

 Max. Insertion Loss, 23 ℃

dB

1.6

1.8

 Min. Return Loss (Input/Output)

dB

50/50

45/45

 Max. Optical Power (Continuous Wave)

mW

500

 Max. Tensile Load

N

5

 Fiber Type

-

HI780 SM

 Operating Temperature

+ 10 to + 50

 Storage Temperature

0 to + 60


1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
