Product Detail
Key Features
Applications

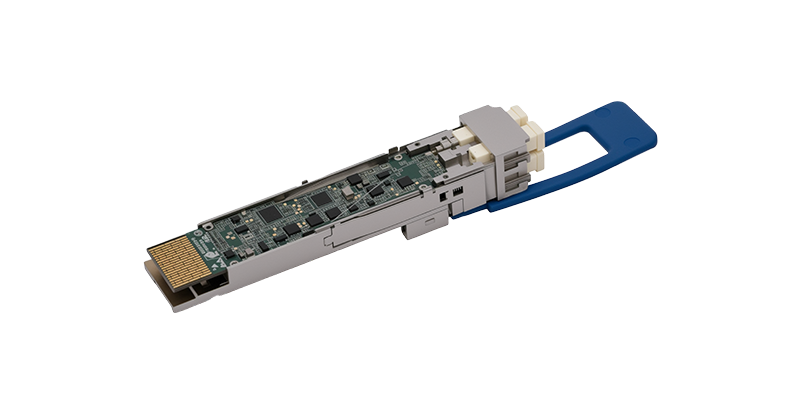

QSFP-DD Form Factor
DWDM System
Full C-Band Gain Flatness
Data Center Interconnect System
Transient Controlling
Variable Output Power Setting
Specifications
|
Parameter |
Unit |
Value |
|
Operating Wavelength Range |
nm |
1528.38 to 1566.72 |
|
Channel Number |
- |
1 to 96 |
|
Input Power Range |
dBm |
- 20 to 2 |
|
Output Power Range |
dBm |
- 5 to 17 |
|
Min. Input Optical Power Shutdown |
dBm |
- 30 |
|
Output Power Variation |
dB |
± 0.5 |
|
Fixed Gain |
dB |
15 |
|
Gain Flatness |
dB |
1.5 |
|
Gain Accuracy |
dB |
± 0.5 |
|
Max. Noise Figure |
dB |
6.7 |
|
Max. Return Loss |
dB |
40 |
|
Max. VOA Attenuation |
dB |
30 |
|
Max. Polarization Dependent Gain |
dB |
0.5 |
|
Max. Polarization Mode Dispersion |
ps |
0.5 |
|
Max. Transient Undershoot/Overshoot (100 μs event) |
dB |
1.5 |
|
Max. Transient Setting Time |
ms |
2 |
|
Operating Case Temperature |
℃ |
- 5 to + 70 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
Working Voltage Range |
V |
3.13 to 3.46 |
|
Max. Power Dissipation |
W |
4 |
