850 nm Circulator

It provides high isolation, low insertion loss, and high extinction ratio, etc.
  • Product Detail

The Polarization Insensitive Circulator is a compact high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.

Specifications

Parameter

Unit

Value

Center Wavelength (λc)

nm

850

Operating Wavelength Range

nm

 λc ± 30

Max. Insertion Loss, λc ± 30, 23 ℃

dB

1.7

Min. Isolation, λc ± 30, 23 ℃, all polarization states

dB

20

Max. Polarization Dependent Loss

dB

0.2

Min. Crosstalk

dB

50

Min. Return Loss

dB

50

Fiber Type

-

HI 780 SM Fiber

Max. Optical Power (Continuous Wave)

mW

300

Max. Tensile Load

N

5

Operating Temperature

+ 10 to + 50

Storage Temperature

0 to + 60

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
 Isolator

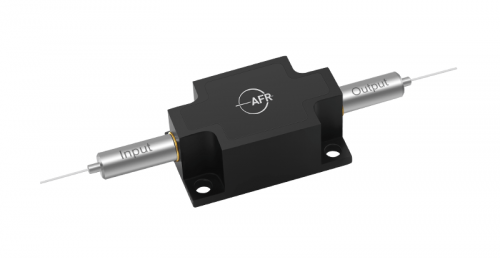

850 nm Polarization Maintaining Isolator
It is ideal for fiber laser and instrumentation applications.
view more
Isolator
638 nm Isolator
AFR provides customized service, please contact us for more details.
view more
Isolator
532 nm Isolator
It is ideal for fiber laser and instrumentation applications.
view more
Isolator
488 nm Isolator
AFR provides customized service, please contact us for more details.
view more
 10 W Isolator

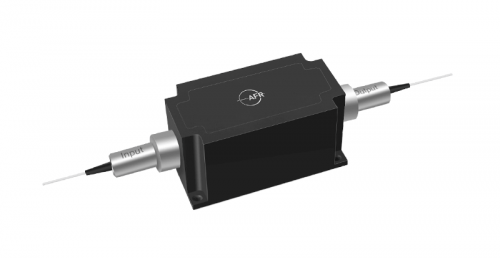

830 nm 10 W Isolator
