Product Detail

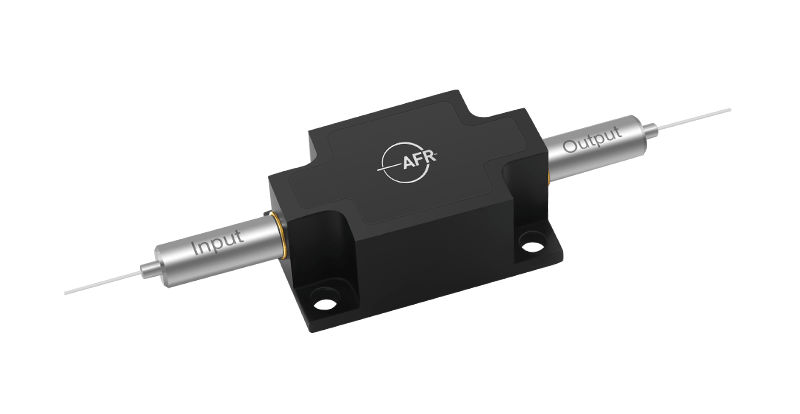

The 532 nm Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
|
Specifications |
||
|
Parameter |
Unit |
Single Stage |
|
Operating Wavelength (λc) |
nm |
532 |
|
Typ. Peak Isolation |
dB | 30 |
|
Min. Isolation, λc, 23 ℃, all polarization states |
dB | 25 |
|
Typ. Insertion Loss, λc, 23 ℃, all polarization states |
dB | 1.8 |
|
Max. Insertion Loss, 23 ℃, all polarization states |
dB |
2 |
|
Max. Polarization Dependent Loss, 23 ℃ |
dB |
0.2 |
|
Min. Return Loss (Input/Output) |
dB |
50/50 |
|
Max. Average Optical Power |
mW |
100 |
|
Max. Tensile Load |
N |
5 |
|
Fiber Type |
- | Nufern 460-HP fiber |
|
Operating Temperature |
℃ |
+ 10 to + 50 |
|
Storage Temperature |
℃ | - 40 to + 85 |
