Product Detail

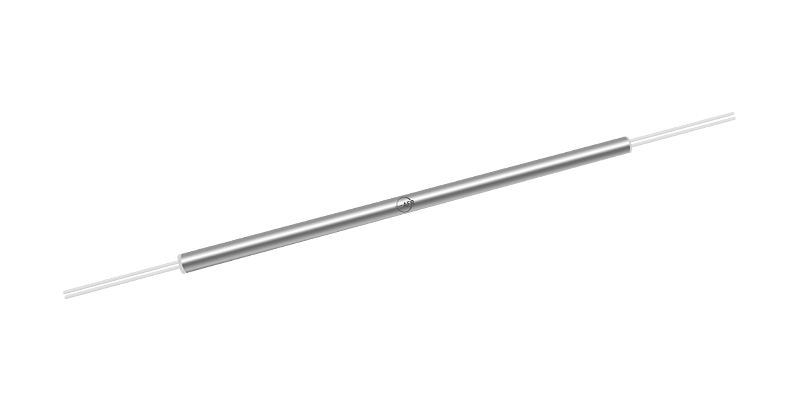

The Single Mode Wavelength Division Multiplexer combines or separates light at different wavelengths. It offers low insertion loss, low polarization dependence, high isolation, and excellent environmental stability.
|
Specifications |
||
|
Parameter |
Unit |
Value |
|
Longer Operating Wavelength |
nm |
1064 ± 50, specified |
|
Max. Insertion Loss |
dB |
0.5 |
|
Min. Isolation |
dB |
15 |
|
Min. PER |
dB |
17 |
|
Shorter Operating Wavelength |
dB |
976 ± 2, specified |
|
Max. Insertion Loss |
nm |
0.5 |
|
Min. Isolation |
dB |
15 |
|
Min. PER |
dB |
17 |
|
Thermal Stability |
dB/℃ |
≤ 0.005 |
|
Min. Return Loss |
dB |
55 |
|
Min. Directivity |
dB |
55 |
|
Max. Optical Power (Continuous Wave) |
W |
2 |
|
Fiber Type |
- |
PM panda fiber |
|
Operating Temperature |
℃ |
- 5 to + 70 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
