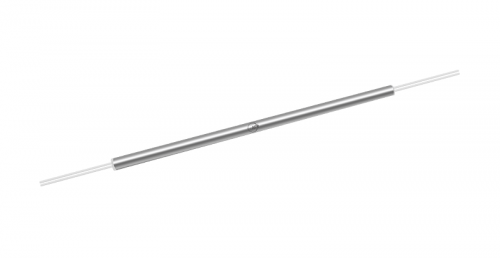

830 nm 10 W Isolator

It is ideal for fiber laser and instrumentation applications.
  • Product Detail

The 532 nm Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high return  loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.

Specifications

Parameter

Unit

Value

Center Wavelength (λc)

nm

830

Operating Wavelength Range

nm

λc ± 75

Max. Polarization Dependent Loss

dB

0.2

Min. Isolation, λc, 23 ℃, all polarization states

dB

28

Min. Isolation, λc ± 7 5nm, 23 ℃, all polarization states

dB

23

Max. Insertion Loss, 23 ℃

dB

1.0

Max. Insertion Loss, λc ± 75nm, 23 ℃

dB

3.0

Min. Return Loss (Input/Output)

dB

45/45

Max. Optical Power (Continuous Wave)

W

10

Max. Tensile Load

N

5

Fiber Type

-

HI 780 SM fiber

Operating Temperature

+10 to + 50

Storage Temperature

0 to + 60
