Product Detail

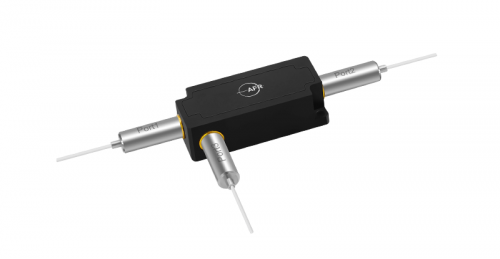

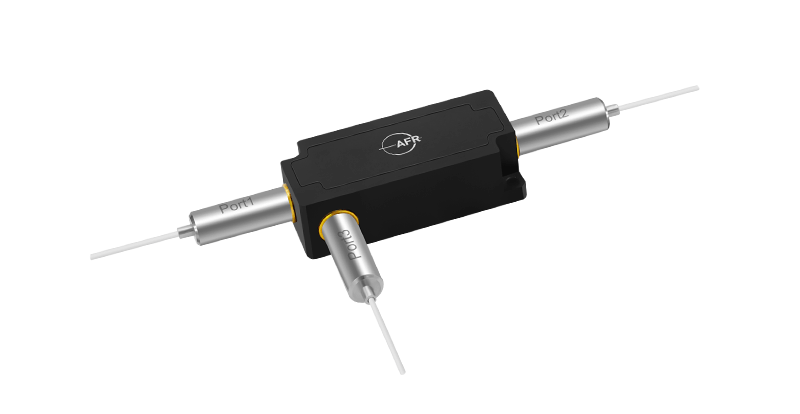

The 2 μm Fiber Optic Circulator is a high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3.
| Key Features | Applications |
| High Power Handling | Fiber Laser |
| Low Insertion Loss | Fiber Optic Instruments |
|
Specifications |
|
|
|
|
Parameter |
Unit |
Value |
|
|
Operating Wavelength |
nm |
1950 or 2000 |
|
|
Max. Insertion Loss, λc ± 30 nm, 23 ℃ |
dB |
1.5 |
|
|
Min. Isolation, λc ± 30 nm, 23 ℃ |
dB |
16 |
|
|
Min. Crosstalk |
dB |
40 |
|
|
Min. Return Loss |
dB |
50 |
|
|
Min. Extinction Ratio |
dB |
18 |
|
|
Max. Average Optical Power |
W |
0.3, 0.5, 1, 2 or 5 |
|
|
Max. Peak Power (Pulse Width, 10 ns) |
kW |
10 |
|
|
Max. Tensile Load |
N |
5 |
|
|
Fiber Type |
- |
Specified by ordering info. |
|
|
Operating Temperature |
℃ |
- 5 to + 70 |
|
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
|
Package Dimensions |
mm |
12 × 17 × 39 |
|
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2The Optical Power is 1 W only for connector added.
