Product Detail

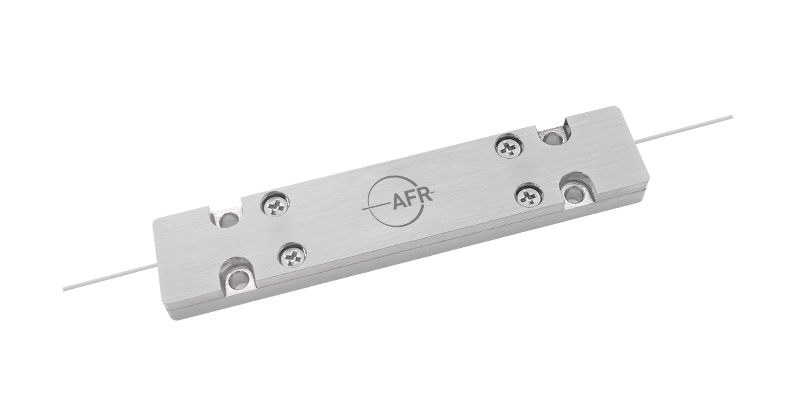

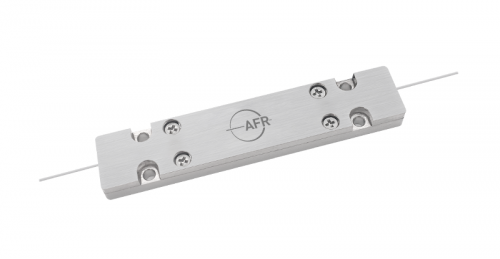

The 2000 nm Mode Field Adapter can effectively expand the mode field of single-mode fiber or LMA fiber, match the LP01 mode field of larger LMA fiber. Available for different fiber types.
| Key Features | Applications |
| Low Insertion Loss | Fiber Laser |
|
Specifications |
|
|
|
|
Parameter |
Unit |
Value |
|
|
Product Type |
- |
MFA |
|
|
Wavelength |
nm |
2000 |
|
|
Input Fiber |
- |
SM1950 |
|
|
Output Fiber |
- |
FUD-4070, SM-GDF-10/130-15FA |
|
|
Signal Insertion Loss |
dB |
< 0.60 |
|
|
Min.Extinction Ratio (for PM Fiber Only) |
dB |
18 |
|
|
Power Handling1 |
W |
10 |
20 |
|
Package Dimensions |
mm |
P1: 50 (L) × 5 (W) × 5 (H) |
P2: 70 (L) × 12 (W) × 8 (H) |
|
Operating Temperature |
℃ |
0 to + 65 |
|
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
