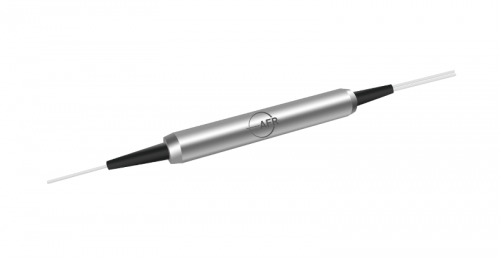

The 2 μm Polarization Beam Combiner/Splitter is a compact high performance lightwave component that combines two orthogonal polarization signals into one output fiber. The most common application is to combine the light of two pump lasers into one single fiber to double the pump power in EDFA or Raman Amplifier. The 2 μm Polarization Beam Combiner can also be used as a beam splitter.
| Key Features | Applications |
| Low Insertion Loss | EDFA |
| Raman Amplifier |
Specifications
Parameter
Unit
Value
Grade
-
Grade P
Grade A
Center Wavelength (λc)
nm
2000
Operating Wavelength Range
nm
λc ± 40
Typ. Insertion Loss
dB
0.6
0.8
Max. Insertion Loss
dB
1.1
1.4
Min. Extinction Ratio, 23 ℃ (for Splitter Only)
dB
20
18
Min. Return Loss
dB
50
Min. Directivity
dB
50
Max. Optical Power (Continuous Wave)
mW
500
Fiber Type
-
PM 1550 Panda Fiber for Ports 1 & 2
-
SMF-28 or PM 1550 Panda Fiber for Port 3
Max. Tensile Load
N
5
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
