Product Detail

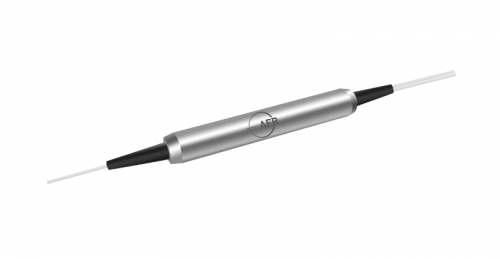

The Isolator Polarization Beam Combiner/Splitter is a compact device that provides both polarization beam combining and optical isolation in one integrated component. The most common application is to combine the light of two pump lasers into one single fiber to double the pump power in EDFA or Raman Amplifier. The Isolator Polarization Beam Combiner/Splitter has extremely low insertion loss, and it can improve the amplifier performance.
| Key Features | Applications |
| Low Insertion Loss | EDFA |
| Compact Size | Raman Amplifier |
Specifications
Parameter
Unit
Value
Stage
-
Single Stage
Dual Stage
Center Wavelength (λc)
nm
2000
Operating Wavelength Range
nm
λc ± 20
Typ. Insertion Loss
dB
0.6
0.7
Max. Insertion Loss
dB
1.2
1.3
Min. Isolation, 23℃
dB
20
42
Min. Extinction Ratio, 23℃ (for splitter only)
dB
20
20
Min. Return Loss
dB
50
Directivity
dB
50
Max. Optical Power (Continuous Wave)
mW
500
Fiber Type
-
PM 1550 Panda Fiber for Ports 1 & 2,
-
SMF-28 or PM 1550 Panda Fiber for Port 3
Max. Tensile Load
N
5
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
