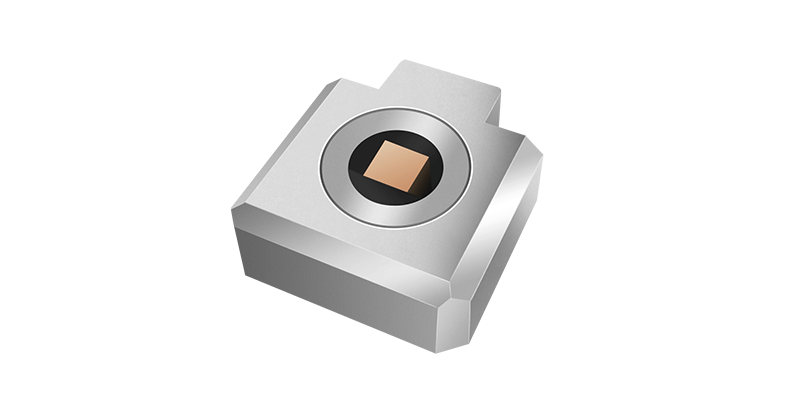

1064 nm Free Space Isolator

The 1064 nm Free Space Isolator is designed for integration within laser diode package to prevent back reflection.
  • Product Detail

The Free Space Isolator series is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make it flexible to fit with different diode laser packaging requirements.

Specifications

Parameter

Unit

Single Stage

Dual Stage

Center Wavelength (λc)

nm

1064

Peak Isolation

dB

40

52

Min. Isolation, λc ± 10 nm, 23℃

dB

30

42

Typ. Insertion Loss, 23 ℃

dB

1.0

2.1

Max. Insertion Loss, 23 ℃

dB

1.2

2.3

Clear Aperture

mm

0.9

Max. Optical Power (Continuous Wave)

mW

300

Polarization Plane of Input

-

As Indicated

Tilt Angle of Input Plane

degree

0 to + 50

Storage Temperature

- 40 to + 85
