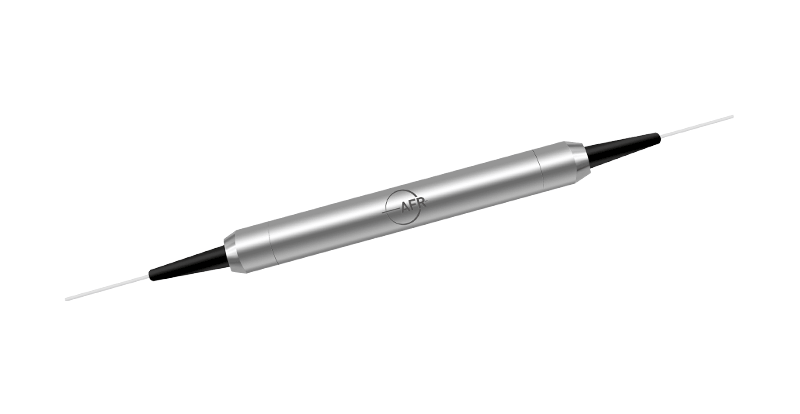

Product Detail
|
Key Features |
Applications |
|
High Extinction Ratio |
Fiber Lasers |
|
Low Insertion Loss |
Amplifiers |
|
High Isolation |
Instrumentation |
Specifications
Parameter
Unit
Value
Stage
-
Single Stage
Dual Stage
Grade
-
Grade P
Grade A
Grade P
Grade A
Center Wavelength (λc)
nm
1064
Typ. Peak Isolation
dB
38
36
55
52
3Min. Isolation, λc, 23 ℃, ≤ 30 mW
dB
35
32
45
42
Typ. Insertion Loss, λc
dB
1.5
1.6
2.4
2.6
Max. Insertion Loss, λc
dB
2.0
2.2
3.4
3.6
Min. Extinction Ratio, 23 ℃
dB
20
18
20
18
Min. Return Loss (Input/Output)
dB
55/50
55/50
55/50
55/50
Max. Average Optical Power
mW
300
Max. Peak Power for ns Pulse
kW
10
Max. Tensile Load
N
5
Fiber Type
-
PM 980 Panda Fiber
Operating Temperature
℃
- 5 to + 50
Storage Temperature
℃
- 40 to + 85
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
2Connector key is aligned to slow axis.3The isolation is related to the input power. Please inform us when you need high isolation and operate above 30 mW.
