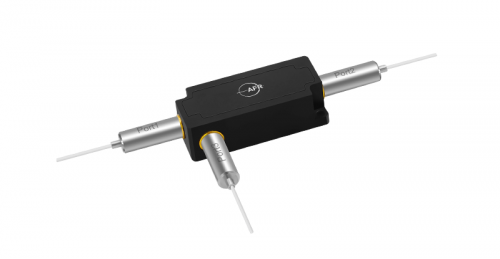

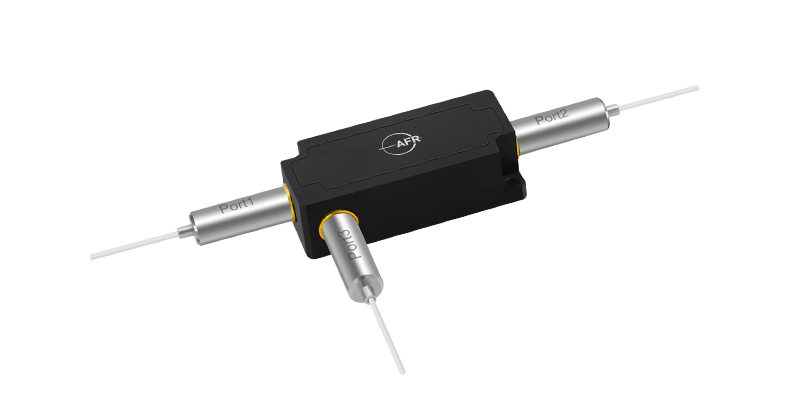

Product Detail
| Key Features | Applications |
| High Power Handling | Equipment |
| Low Insertion Loss | Fiber Optic Instruments |
Specifications
Parameter
Unit
Value
Operating Wavelength
nm
1950 or 2000
Max. Insertion Loss, λc ± 30 nm, 23 ℃
dB
1.5
Min. Isolation, λc ± 30 nm, 23 ℃
dB
16
Min. Crosstalk
dB
40
Min. Return Loss
dB
50
Max. Polarization Dependent Loss
dB
0.2
Max. Average Optical Power
W
0.3, 0.5, 1, 2 or 5
Max. Peak Power for ns Pulse
kW
10
Max. Tensile Load
N
5
Fiber Type
-
Specified by ordering info.
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
Package Dimensions
mm
12 × 17 × 39
1IL is 0.3 dB higher and RL is 5 dB lower for each connector added. The Optical Power is 1 W only for connector added.
