Motorized Variable Optical Delay Line provides precision optical path length adjustment of up to 500 ps. Driven by a stepping motor and driver has been integrated inside following the RS-232 standard, the MDL has a delay resolution about 0.76 μm (2.5 fs). In addition, its advanced motion design guarantees longevity for long-term continuous operation. Low insertion loss and high reliability make this device ideal for integration in optical coherence tomography (OCT) systems, network equipment and test instruments for precision optical path length control or timing alignment.

The ClearCut kW Package-Free Fiber Bragg Grating products are ultra low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut design and special process, the FBG can handle kilowatt level pump power and signal power with recoated only.

The High Power ClearCut Fiber Bragg Grating products are low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut design and packaging, the FBG can handle kilowatt level pump power and signal power. Custom configurations are available.

The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The fiber isolator is ideal for fiber lasers and instrumentation applications.

The Singlemode Wavelength Division Multiplexer combine or separate light at different wavelengths. They offer very low insertion loss, low polarization dependent loss, high isolation and excellent environmental stability. These components have been extensively used in raman amplifier, CATV, WDM networks and fiber optic instruments.

The Special Wavelength Coupler offers very low insertion loss, low polarization dependent loss and excellent environmental stability. Accurate coupling ratios from 0.01/99.99 to 50/50 are available with very good uniformity in the operating wavelength range. These components find extensive applications to perform power splitting and monitoring functions in all kinds of optical communication systems.

The Polarization Maintaining Fused Coupler offers very low insertion loss, high polarization extinction ratio and excellent environmental stability. Accurate coupling ratios from 0.01/99.99 to 50/50 are available with very good uniformity at center wavelength. These components find extensive applications to perform power splitting and mornitoring functions in all kinds of optical communication systems.

The ClearCut Fiber Bragg Grating Reflectors are components designed for ultrafast lasers without extra dispersion. With AFR's ClearCut design and special process, the FBG have ultra low temperature slope and outstanding reliability. Custom configurations are available.

The ClearCut pulse stretchers are chirped fiber bragg gratings for ultrafast fiber lasers. With AFR's ClearCut design and special process, the devices could provide large dispersion for pulse stretching and performance with outstanding reliability. Custom configurations are available.

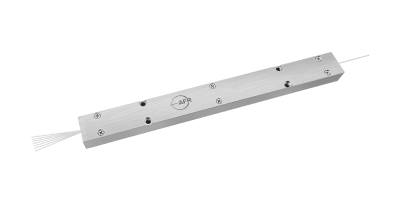

The High Power Pump & Signal Combiner enables highly efficient combining of the powers from up to 6 multimode pump diodes and a signal laser into a double cladding output fiber. The pump and signal combiner can handle more than 1 kW combined power. Available for different fiber types.

The Cladding Power Stripper (CPS) is designed for efficiently stripping off residual cladding power, ASE and escaped core modes of double cladding fiber while preserving minimal degradation to signal power and beam quality.
