AFR 1064 nm Polarization Maintaining Filter Fiber Splitter Module (1 × 4/1 × 8) for Fiber Sensing, Fiber Lasers

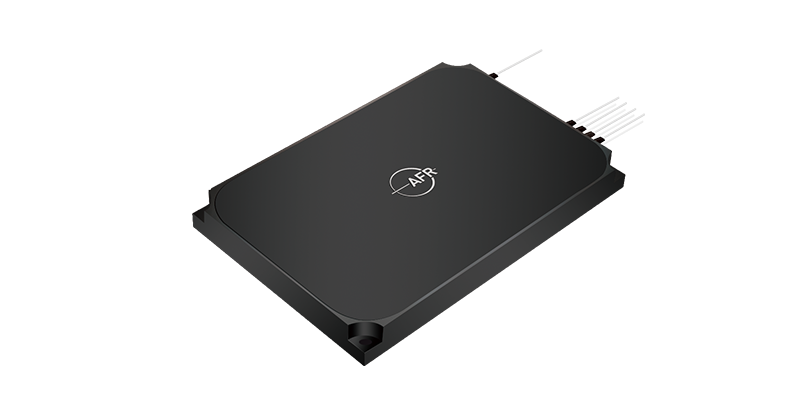

1064 nm Polarization Maintaining Filter Coupler Module (1 × 3/1 × 4/1 × 8)

The PMFCM series is manufactured by using advanced technology to allow the input signal to be split into multiple channels at a given splitting ratio with high extinction ratio, low excess loss, good uniformity, low WDL and low TDL. It can be widely used in fiber sensors, amplifiers, various laser applications, etc.

Inquiry now Download

Product Detail

Key Features	Applications
High Extinction Ratio	Fiber Sensing
Low Insertion Loss	Fiber Lasers
Low Wavelength Dependence Loss

Specifications

Parameter	Unit	Value
Configuration	-	1 × 3	1 × 4	1 × 8
Center Wavelength (λc)	nm	1064	1064	1064
Operating Wavelength Range	nm	λc ± 30	λc ± 30	λc ± 30
Insertion Loss	dB	≤ 6.1, Typ. 5.7	≤ 7.7, Typ. 7.4	≤ 11.5, Typ. 11.2
Wavelength Dependent Loss	dB	≤ 0.5, Typ. 0.3	≤ 0.5, Typ. 0.3	≤ 0.5, Typ. 0.3
Max. IL Uniformity	dB	0.7	0.8	1
Min. Return Loss	dB	50	50	50
Min. Directivity	dB	50	50	45
Min. Extinction Ratio	dB	20	20	20
Max. Optical Power	mW	300	300	300
Fiber Type	-	PM 980 Panda Fiber	PM 980 Panda Fiber	PM 980 Panda Fiber
Operating Temperature	℃	- 5 to + 70	- 5 to + 70	- 5 to + 70
Storage Temperature	℃	- 40 to + 85	- 40 to + 85	- 40 to + 85
Package Dimensions	mm	160 × 140 × 10	160 × 140 × 10	160 × 160 × 10

¹IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
