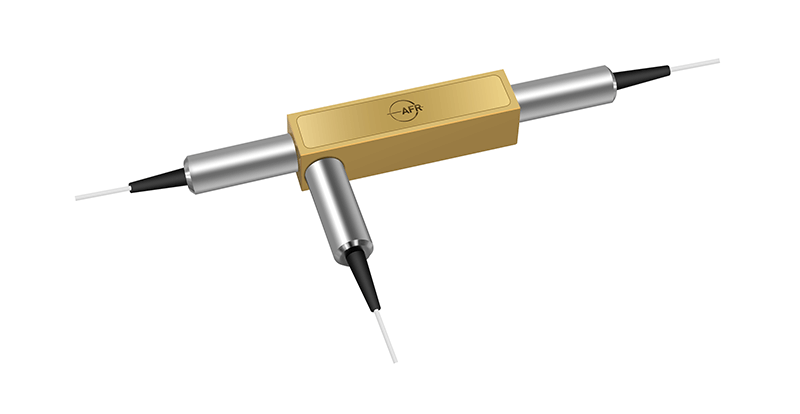

1064 nm Circulator

The Optical Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The Optical Circulator provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability.

Inquiry now Download

Product Detail

Key Features	Applications
High Isolation	Fiber Lasers
Low Insertion Loss	Fiber Optic Instruments
Low Polarization

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Operating Wavelength Range	nm	λc ± 5
Typ. Insertion Loss, 23 ℃	dB	2
Max. Insertion Loss, 23 ℃	dB	2.2
Min. Isolation, λc, 23 ℃, All Polarization States	dB	20
Min. Crosstalk	dB	45
Min. Return Loss	dB	50
Max. Polarization Dependent Loss, 23 ℃	dB	0.2
Max. Polarization Mode Dispersion	ps	0.1
Max. Optical Power (Continuous Wave)	mW	300
Max. Tensile Load	N	5
Operating Temperature	℃	0 to + 30
Storage Temperature	℃	- 40 to + 85
Fiber Type	-	HI 1060 Fiber
Package Dimensions	mm	34 × 8.4 × 8.4

¹IL is 0.5 dB higher and RL is 5 dB lower for each connector added.
