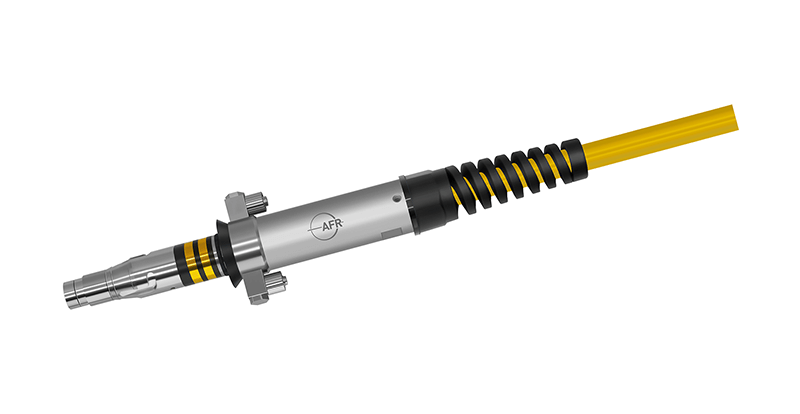

Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
Fiber Laser |
|
High Power Handling |
Fiber Coupling |
|
High Backward Power Handling |
|
|
Indirect Water Cooling |
|
|
Safety Interlock |
|
Specifications |
||
|
Parameter |
Unit |
Value |
|
Operation Wavelength |
nm |
1080 ± 30 |
|
Numerical Aperture (NA) |
- |
≤ 0.22 |
|
Max. Transmission Loss of Fiber Core |
% |
2 |
|
Max. Power Handling |
kW |
20 |
|
Max. Peak Power |
- |
Max. 50 kW @ 1 ms |
|
|
|
Max. 1 mW @ 50 ns |
|
Max. Stripping Cladding Power |
- |
1 kW for 10 min |
|
|
|
500 W Continuously |
|
Max. Z-Position Tolerance |
μm |
± 80 |
|
Max. Angular Deviation |
mrad |
10 |
|
Cooling Water Requirements |
|
|
|
Flow Rate |
L/min |
1.5 - 3 |
|
Min. Water Pressure |
Mpa |
0.8 |
|
Water Temperature |
°C |
10 - 45 |
|
Water Hose Diameter |
mm |
ID/OD = 4/6 |
|
Others |
|
|
|
Mechanical Interface |
- |
Compatible with the Standard QD Interface |
|
Type of Cable Gland |
- |
Metal |
|
Min. Fiber Tensile Load |
N |
5 |
|
Operating Ambient Temperature |
°C |
+ 5 to + 50 |
|
Storage Temperature |
°C |
- 20 to + 70 |
|
Safety Interlock |
|
|
|
Interlock Circuit Resistance |
- |
3.3 kΩ ± 5 % + 2 Ω/m Fiber |
|
Thermoswitch Limit |
- |
70 °C ± 5 °C, Reset temp < 30 °C |
|
Max. Working Voltage |
- |
33 V |
