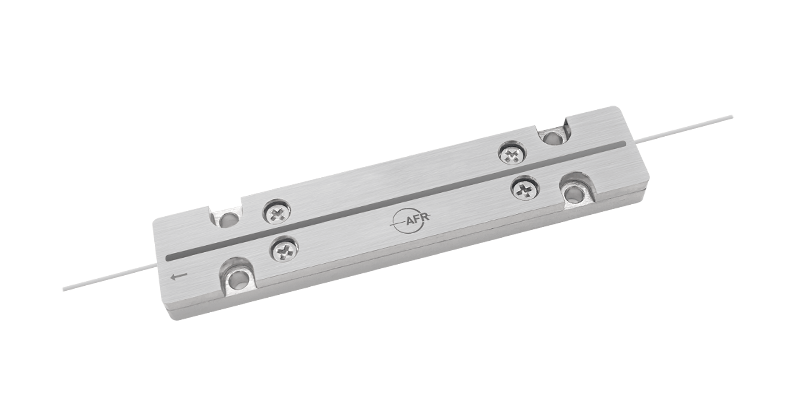

ClearCut Raman Scattering Suppressor Fiber Bragg Grating

The ClearCut Raman Scattering Suppressor Fiber Bragg Grating products are ultra low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut designing and special process, the devices can handle kilowatt level pump power and signal power with recoated only. It is the only cost-effective solution that eliminates the SRS at its source and enables immunity from back reflection from the work piece.
  • Product Detail

Key Features Applications
High Power Handling Fiber Laser
Low Temperature Slope
Exceptional Reliability


Specifications

 Parameter

Unit

Value

 Passband Center Wavelength

nm

1070

1080

 RSS Wavelength

nm

1123

1132

 Tolerance on RSS Center Wavelength

nm

± 2

 Bandwidth of RSS Wavelength at 95%

nm

20

 Max. Insertion Loss (Passband Center Wavelength)

dB

0.2

 Min. Attenuation (RSS Wavelength)

dB

20

 Min. Return Loss (RSS Wavelength)

dB

25

 Fiber Core Dimension

μm

10

14

20

25

 Max. Core Signal Power Handling

W

300

2000

3000

4000

 Max. Core RSS Power Handling

W

3

20

30

40

 Fiber Cladding Dimension

μm

125

250

400

 Max. Clad Pump Power Handling

W

300

2000

3000

 Package Dimensions

mm

80 (L) × 12 (W) × 5 (H)

 Storage Temperature

- 40 to + 85
