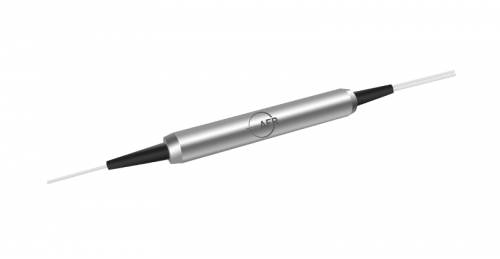

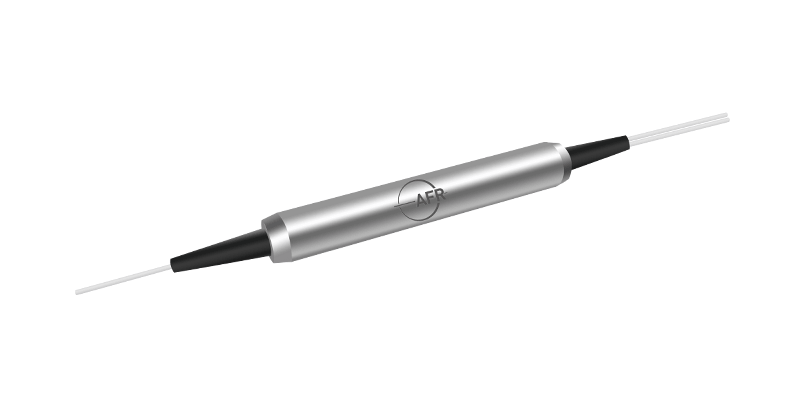

Product Detail
| Key Features | Applications |
| Low Insertion Loss | Fiber Sensing |
| Low Polarization Dependent Loss | EDFA |
Specifications
Parameter
Unit
Value
Pass Band
Wavelength Range
nm
1950 - 2050
Typ. Insertion Loss
dB
0.6
Max. Insertion Loss
dB
0.8
Typ. Isolation
dB
30
Min. Isolation
dB
25
Reflection Band
Wavelength Range
nm
1560 - 1580
Typ. Insertion Loss
dB
0.6
Max. Insertion Loss
dB
0.8
1.3
Typ. Isolation
dB
15
Min. Isolation
dB
12
Min. Return Loss
dB
50
Max. Polarization Dependent Loss
dB
0.2
Typ. Polarization Dependent Loss
dB
0.1
Thermal Stability
dB/℃
0.005
Max. Optical Power (Continuous Wave)
mW
300
Max. Tensile Load
N
5
Fiber Type
-
SMF-28 Fiber (All Ports)
SMF-28 Fiber for Reflect Port and
-
or SM1950 Fiber (All Ports)
SM1950 Fiber for Common & Pass Port
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
