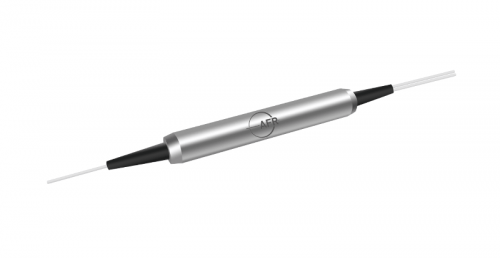

1310/1480/1550 nm Filter WDM

The Filter Wavelength Division Multiplexer is based on environmentally stable thin film filter technology. The devices combine or separate light at different wavelengths in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.

Inquiry now Download

Product Detail

Key Features	Applications
Low Polarization Dependent Loss	EDFA
Low Insertion Loss	Raman Amplifier
High Isolation	Fiber Optic Instruments

Specifications

Parameter		Unit	Value
Pass Band	Wavelength Range	nm	1270 - 1350	1450 - 1490	1500 - 1520
			(1530 - 1600)	(1530 - 1580)	(1530 - 1570)
	Typ. Insertion Loss	dB	0.4	0.4	0.5
	Max. Insertion Loss	dB	0.6	0.6	0.7
	Typ. Isolation	dB	35	30	35
	Min. Isolation	dB	30	25	30
Reflection Band	Wavelength Range	nm	1530 - 1600	1530 - 1580	1530 - 1570
			(1270 - 1350)	(1450 - 1490)	(1500 - 1520)
	Typ. Insertion Loss	dB	0.3
	Max. Insertion Loss	dB	0.5
	Typ. Isolation	dB	15
	Min. Isolation	dB	12
Min. Return Loss		dB	50
Max. Polarization Dependent Loss		dB	0.1
Typ. Polarization Dependent Loss		dB	0.05
Thermal Stability		dB/℃	0.005
Max. Optical Power		mW	300
Max. Tensile Load		N	5
Fiber Type		-	SMF-28
Operating Temperature		℃	- 5 to + 70
Storage Temperature		℃	- 40 to + 85

¹IL is 0.3 dB higher, RL is 5 dB lower for each connector added.
