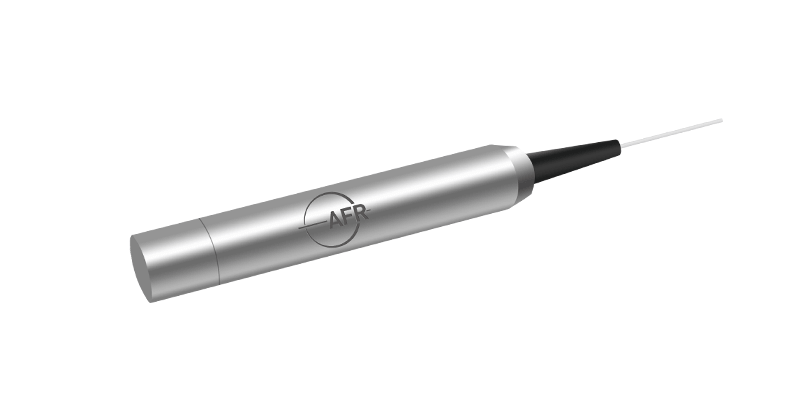

The 1064 nm Faraday Mirror is a passive device that provides 90 degree polarization rotation respect to incident light. The FM offers excellent performance including the lowest possible insertion loss and environmental stability. It is used in amplifiers, fiber lasers and fiber instruments to minimize the polarization effect.
Product Detail
|
Key Features |
Applications |
|
High Isolation |
Fiber Optic Instruments |
|
Low Insertion Loss |
Fiber Lasers |
|
Fiber Sensing |
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 5
Typ. Insertion Loss
dB
2.8
Max. Insertion Loss
dB
3.0
Faraday Rotation Angle (Single Pass)
degree
45
Max. Rotation Angle Tolerance, λc, 23 ℃
degree
± 3
Max. Polarization Dependent Loss
dB
0.1
Max. Polarization Mode Dispersion
ps
0.05
Fiber Type
-
HI 1060 Fiber
Max. Optical Power (Continuous Wave)
mW
150
Max. Tensile Load
N
5
Operating Temperature
℃
- 5 to + 50
Storage Temperature
℃
- 40 to + 85
1IL is 0.5 dB higher and RL is 5 dB lower for each connector added.
