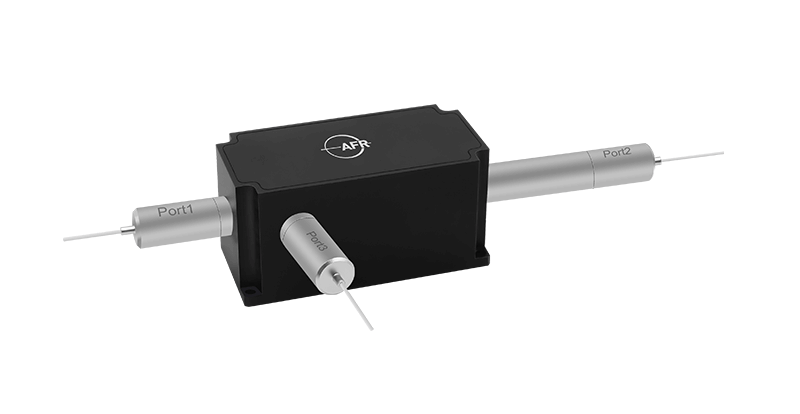

The High Power Polarization Insensitive Circulator is characterized with low insertion loss, high isolation, high power handling, high return loss. The circulator is ideal for fiber laser and instrumentation applications.
Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
Fiber Lasers |
|
High Isolation |
Instrumentation |
|
High Return Loss |
|
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 10
Min. Isolation, All Polarization States, 23 ℃
dB
25
Typ. Insertion Loss, 23 ℃
dB
0.5
Max. Insertion Loss, 23 ℃
dB
0.8
Max. Polarization Dependent Loss
dB
0.2
Min. Crosstalk
dB
45
Min. Return Loss
dB
45
Max. Average Optical Power
Port 1 → Port 2
W
50
Port 2 → Port 3
W
10
Max. Peak Power (Pulse Width, 10 ns)
kW
20
Max. Tensile Load
N
5
Fiber Type
-
Specified by ordering info
Operating Temperature
℃
+ 10 to + 50
Storage Temperature
℃
0 to + 60
