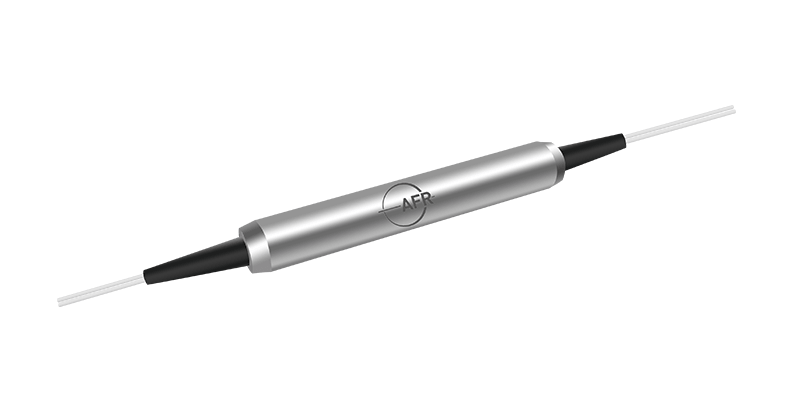

The 4-Port Polarization Maintaining Optical Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, incoming Port 2 signals to Port 3, and incoming Port 3 signals to Port 4. This PM Optical Circulator provides high isolation, low insertion loss, high extinction ratio, and excellent environmental stability.
Product Detail
|
Key Features |
Applications |
|
High Isolation |
Fiber Optic Instruments |
|
Low Insertion Loss |
Fiber Lasers |
|
High Extinction Ratio |
Specifications
|
Parameter |
Unit |
Type A |
Type B |
|
Center Wavelength (λc) |
nm |
1064 |
|
|
Typ. Insertion Loss, λc, 23 ℃ |
dB |
3.8 |
2.4 |
|
Max. Insertion Loss, λc, 23 ℃ |
dB |
4.2 |
2.8 |
|
Typ. Isolation, λc, 23 ℃ |
dB |
52 |
30 |
|
Min. Isolation, λc, 23 ℃ |
dB |
45 |
20 |
|
Min. Extinction Ratio, 23 ℃ |
dB |
20 |
20 |
|
Min. Directivity (1 - > 3, 2 - > 4) |
dB |
50 |
|
|
Min. Return Loss |
dB |
50 |
|
|
Max. Optical Power (Continuous Wave) |
mW |
300 |
|
|
Max. Tensile Load |
N |
5 |
|
|
Fiber Type |
- |
PM 980 Panda Fiber |
|
|
Operating Temperature |
℃ |
- 5 to + 50 |
|
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2The routing path: Type A: 1 - > 2, 2 - > 3, 3 - > 4; Type B: 1 - > 2, 2 - > 3, 3 - > 4, 4 - > 1.
3The optical path is aligned to slow axis while fast axis is blocked.
