Product Detail
Key Features
Applications

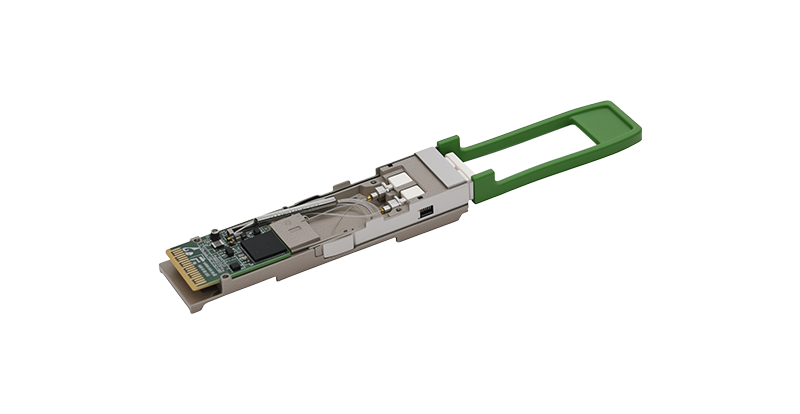

QSFP Form Factor
Optical Power Monitoring of DWDM System
50 GHz and 100 GHz Channel Spacing Available
Specifications
|
Parameter |
Unit |
Value |
|
Channel Center Frequency Range |
THz |
191.35 to 196 |
|
Absolute Channel Center Frequency Accuracy |
GHz |
± 4 |
|
Configurable Channel Bandwidth |
GHz |
50 or 100 |
|
Max. Total Optical Input Power |
dBm |
24 |
|
Channel Input Power Range |
dBm |
- 15 to 15 |
|
Input Coupler Ratio |
% |
5/95 |
|
Max. Insertion Loss |
dB |
1 |
|
Max. Channel Power Difference (50 GHz) |
dB |
12 |
|
Max. Channel Power Difference (100 GHz) |
dB |
15 |
|
Channel Power Accuracy |
dB |
± 1.2 |
|
Max. Noise Floor |
dBm |
-20 |
|
Polarization Dependent Power Accuracy |
dB |
± 0.5 |
|
Max. Channel Power Repeatability |
dB |
0.5 |
|
Operating Case Temperature |
℃ |
- 5 to + 50 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
Working Voltage Range |
V |
3.13 to 3.46 |
|
Max. Power Dissipation |
W |
6.5 |
