1310/1550 nm 3-Port Polarization Maintaining Optical Circulator with Tap

The Polarization Maintaining Optical Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The PM Optical Circulator provides high isolation, low insertion loss, high extinction ratio, and excellent environmental stability.

Inquiry now Download

Product Detail

Key Features	Applications
High Isolation	Fiber Sensing
Low Insertion Loss	Fiber Optic Instruments
Compact Size

Specifications

Parameter	Unit	Type A
Center Wavelength (λc)	nm	1310 or 1550
Operating Wavelength Range	nm	λc ± 30
Max. Insertion Loss, P1 to P2, P2 to P3	dB	1.0
Insertion Loss, P1 to Tap	dB	27 - 30
Min. Isolation, P2 to P1, P3 to P2, 23 ℃	dB	40
Min. Extinction Ratio, 23 ℃	dB	20
Min. Crosstalk P1 to P3	dB	50
Min. Return Loss	dB	50
Max. Optical Average Power	mW	300
Max. Peak Power for ps Pluse	kW	10
Max. Tensile Load	N	5
Fiber Type		PM Panda Fiber
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.

²Optical Power is 1W only for each connector added. The optical path is aligned to slow axis and fast axis is blocked.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 1310/1550 nm 3-Port Polarization Maintaining Optical Circulator with Tap

Applications

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related products

AFR 40 GHz IQ Electro Optic Modulator for Automatic Bias Control

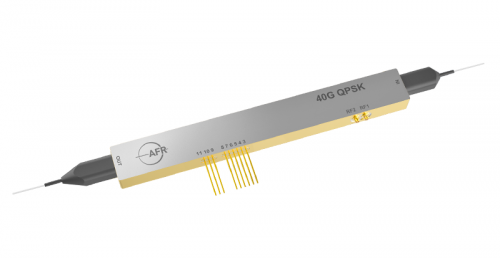

40 GHz IQ Modulator
