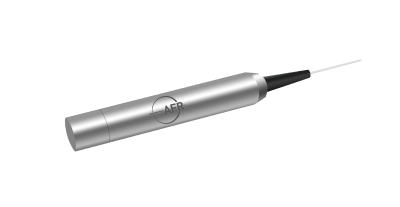

1064nm Faraday Mirror
a passive device that provides 90 degree rotation regarding to the polarization state of the input light
- 1064nm Faraday Mirror
- Faraday Mirror
View more
1310/1480/1550nm PM Faraday Mirror
provides 90 degree rotation regarding to the polarization state of the input light
View more
1550nm RC Fiber Faraday Mirror
provides 90 degree rotation without regarding to the polarization state of the input light
- 1550nm RC Fiber Faraday Mirror
- RC Fiber Faraday Mirror
- Fiber Faraday Mirror
View more
1310/1480/1550nm Faraday Mirror
provides 90 degree rotation regarding to the polarization state of the input light
- 1310/1480/1550nm Faraday Mirror
- 1480nm Faraday Mirror
- 1550nm Faraday Mirror
View more
1310/1550nm Optical Fiber Mirror
Specifications Parameter Unit Value Center Wavelength (λc) nm 1310 or 1550 1064 Operating Wavelength Range nm ± 20 ± 20 Typ. Insertion Loss dB 0.4 0.5 Max. Insertion Loss dB 0.5 0.7 Max. Polarization Dependent Loss dB 0.05 0.05 Max. Optical Power (Continuous Wave) mW 300 300 Max. Tensile Load N 5 5 Fiber Type SMF-28 fiber HI 1060 fiber Operating Temperature ℃ -5 to +70 -5 to +70 Storage Temperature ℃ -40 to +85 -40 to +85
- 1550nm Optical Fiber Mirror
- 1310nm Optical Fiber Mirror
- Optical Fiber Mirror
View more
1310/1480/1550nm PM Faraday Mirror
a passive device that provides 90 degree rotation regarding to the polarization state of the input light
- 1310/1480/1550nm PM Faraday Mirror
- 1480/1550nm PM Faraday Mirror
- 1550nm PM Faraday Mirror
View more
1310/1480/1550nm Faraday Mirror
It is used in EDFAs, fiber lasers and fiber instruments to mininize the polarization effect
- 1310nm Faraday Mirror
View more
1920/2000/2070nm PM Faraday Mirror
It is used in amplifiers, fiber lasers and fiber instruments to minimize the polarization effect
- 2070nm Faraday Mirror
- 1920nm Faraday Mirror
View more
1920/2000/2070nm Faraday Mirror
It is used in EDFAs, fiber lasers and fiber instruments to mininize the polarization effect.
- 2000nm Faraday Mirror
View more
