AFR 1310/1550 nm Fiber Mirror for Fiber Sensing, Equipment

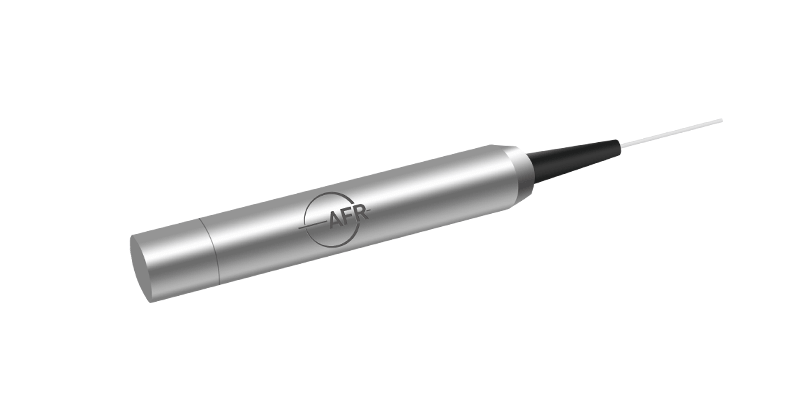

1064/1310/1550 nm Fiber Mirror

The Optical Fiber Mirror is designed and manufactured according to Telcordia standard. It is characterized with low insertion loss, excellent environmental stability and reliability. It has been widely used in fiber optics communication equipment, fiber sensing to reflect light input backward through the fiber.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	Fiber Sensing
	Equipment

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	1310 or 1550	1064
Operating Wavelength Range	nm	± 20	± 20
Typ. Insertion Loss	dB	0.4	0.5
Max. Insertion Loss	dB	0.5	0.7
Max. Polarization Dependent Loss	dB	0.05	0.05
Max. Optical Power (Continuous Wave)	mW	300	300
Max. Tensile Load	N	5	5
Fiber Type	-	SMF-28 Fiber	HI 1060 Fiber
Operating Temperature	℃	- 5 to + 70	- 5 to + 70
Storage Temperature	℃	- 40 to + 85	- 40 to + 85

¹IL is 0.3 dB higher, RL is 5 dB lower for each connector added.
