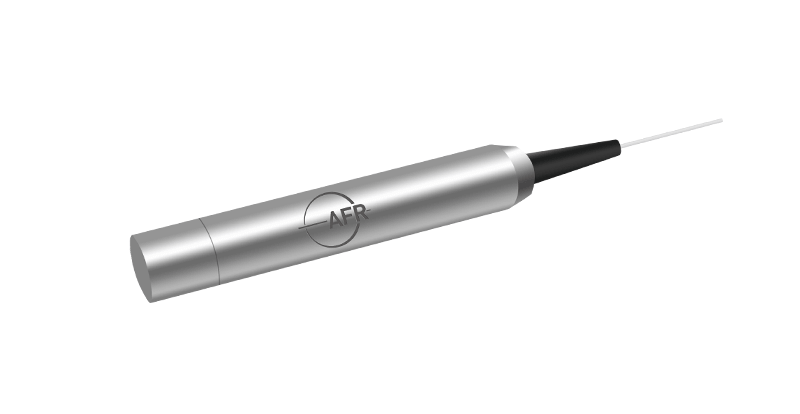

1550 nm Reduced Cladding Fiber Faraday Mirror

The RC Fiber Faraday Mirror is a passive device that provides 90 degree rotation without regarding to the polarization state of the input light. The RCFM offers excellent performance including the lowest possible insertion loss and environmental stability. It is used in compact optical amplifier, DWDM systems, sensors, compact optical circuits and other fiber optic communication equipment to minimize the polarization effect.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	Denser Channel Plans
	Fiber Sensing

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	1550
Operating Wavelength Range	nm	λc ± 15
Typ. Insertion Loss	dB	1.0
Max. Insertion Loss	dB	1.2
Faraday Rotation Angle (Single Pass)	degree	45
Max. Rotation Angle Tolerance over Wavelength at 23 ℃	degree	± 3
Max. Polarization Dependent Loss	dB	0.05
Max. Optical Power (Continuous Wave)	mW	300
Max. Tensile Load	N	5
Fiber Type	-	RC 1550 Fiber
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85
