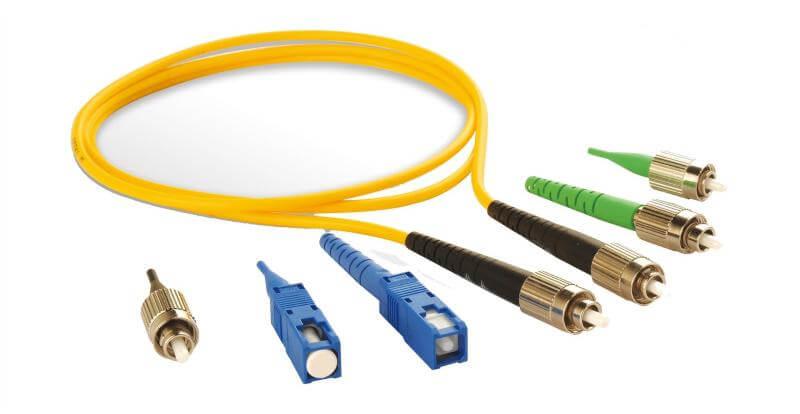

980/1060/1310/1480/1550 nm Polarization Maintaining Patchcord

The PM Patchcord series has excellent environmental stability, high return loss, low insertion loss. It is ideal for PM amplifiers, fiber lasers and test instrumentation applications.
  • Product Detail

Key Features Applications
High Return Loss Fiber Lasers
Low Insertion Loss Test Instrumentation Applications
Excellent Environmental Stability PM Amplifiers


Specifications







 Parameter

Unit

Value

 Connector Type

-

UPC

APC

 Wavelength

nm

9801, 10601, 1310, 1480 or 1550

 Typ. Insertion Loss

dB

0.30

0.40

 Max. Insertion Loss

dB

0.50

 Min. Return Loss

dB

50

60

 Min. Extinction Ratio

dB

23

 Max. Optical Power (Continuous Wave)

mW

300

 Fiber Length Tolerance

%

± 10 or specify

 Operating Temperature

- 5 to + 70

 Storage Temperature

- 40 to + 85


1IL is 0.1 dB higher for 980 & 1060 nm. Connector key is aligned to slow axis.



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

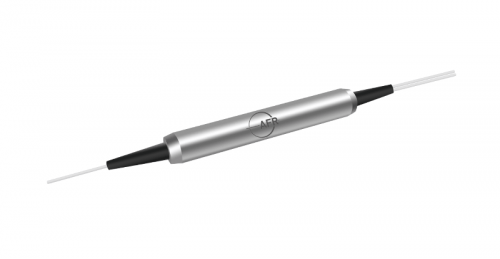

AFR 1310/1550 nm Mini Circulator for Denser Channel Plans, Access/Enterprise Networks, Fiber Sensing
1310/1550 nm Mini Circulator
The Mini Fiber Optic Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The optical circulator provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, high speed systems and bi-direction communication systems.
view more
AFR 2 μm Polarization Maintaining Patchcord for Fiber Lasers, Test Instrumentation Applications, PM Amplifiers
2 μm Polarization Maintaining Patchcord
The PM Patchcord series has excellent environmental stability, high return loss, low insertion loss. It is ideal for PM amplifiers, fiber lasers and test instrumentation applications.
view more

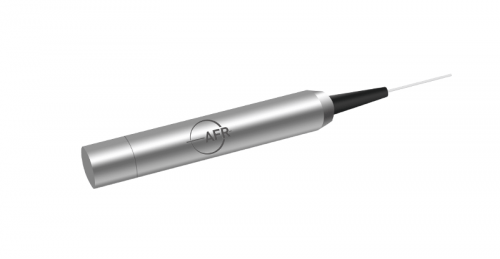

AFR 1920/2000/2070 nm Polarization Maintaining Faraday Mirror for Fiber Laser, Fiber Sensing
