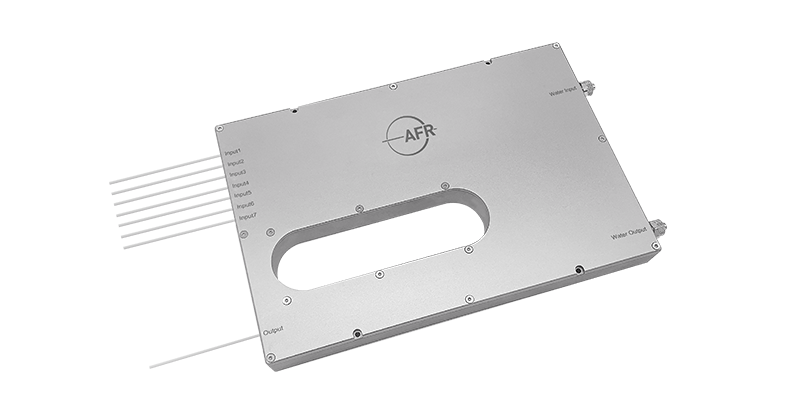

6 kW (N+1)×1 Laser Combiner Module

The 6 kW (N+1)×1 Laser Combiner Module is a high power laser cable with QBH output connector.
  • Product Detail

AFR's High Power Laser Combiner Module is designed for combining the power from N units of kW class fiber lasers and one aiming beam with high efficiency. Available in bare fiber or Dragon as the output of the module. Dragon is a high power laser cable with QBH compatible output connector.

Specifications

Parameter

Unit

Value

Product Type

-

(N+1)×1/N×1

Operation Wavelength Range

nm

1060-1080

Input Fiber Type - LMA-GDF-14/250-M or LMA GDF 20/400-M

Red Beam Fiber Type

-

HI 1060 or LMA-GDF-10/125-M

Output Fiber Type

-

Nufern BD-S100/120/360-STN, NA0.22

Max. Input Power Handling per Port W  2000

Backward Power Handling

W

1000

Output Fiber Length m 2
Armor Cable Length

m

20

Min. Combing Efficiency

%

97
Typ. Combining Efficiency

%

98

Package Dimensions

mm

303 (L) × 203 (W) × 27 (H)
