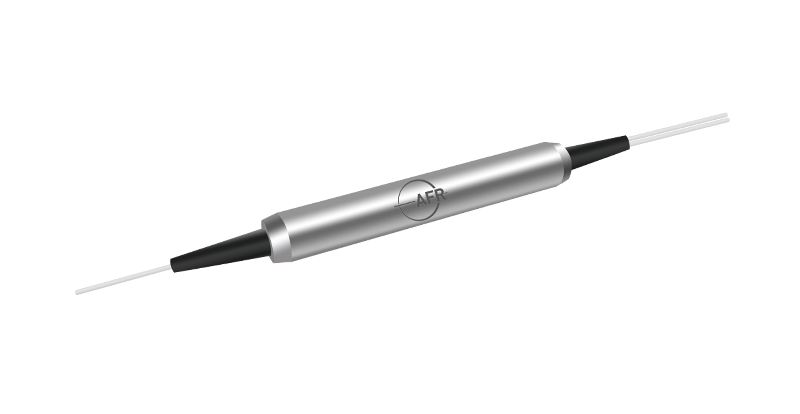

1550 nm Ultra Low Ratio Tap Coupler

It splits a very small amount of light from a signal path to a tap port.
  • Product Detail

The Ultra Low Ratio Tap Coupler splits a very small amount of light from a signal path to a tap port. Low tap ratios such as 0.1%, 0.01% or 0.001% enable the monitoring photodetector to operate without damage or saturation. It is suitable for very high optical power, its main application is in the monitoring of optical sources such as fiber lasers.

Specifications

Parameter

Unit

Value

Center Wavelength

nm

1064,1550 or Specify

Operating Wavelength

nm

λc±10

Coupling Ratio  %  0.1     0.01    0.001

Tap Insertion Loss

dB

30±3  40±4  50±5

Max. Signal Insertion Loss

dB

0.1

Thermal Stability

dB/℃

≤ 0.002

Min. Return Loss

dB

55

Max. Optical Power (Continuous Wave)

W

5

Operating Temperature

 ℃

-40 to +75

Storage Temperature  ℃ -40 to +85

Fiber Type

Singlemode fiber
