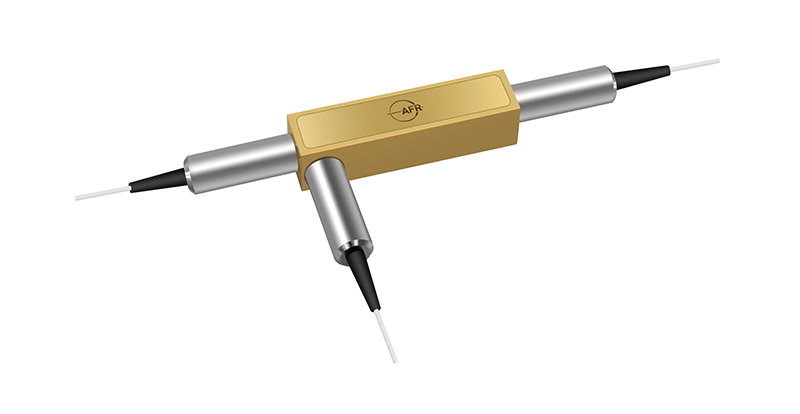

1550 nm Polarization Maintaining Circulator

The 1550 nm Polarization Maintaining Circulator provides high isolation and low insertion loss.
  • Product Detail

The 1550 nm Polarization Maintaining Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The component provides high isolation, low insertion  loss, high extinction ratio and excellent environmental stability.

Specifications

Parameter

Unit

Value

Center Wavelength (λc)

nm

1550

Operating Wavelength Range

nm

λc ± 10

Min. Extinction Ratio

dB

20

Max. Insertion Loss

dB

1

Min. Isolation

dB

20

Min. Crosstalk

dB

45

Min. Return Loss

dB

50

Max. Optical Power (Continuous Wave)

mW

300

Max. Tensile Load

N

5

Operating Temperature

0 to + 40

Storage Temperature

- 40 to + 85

Fiber Type

-

PM 1550 fiber

Package Dimensions

mm

 (L) 34 × (W) 8.4 × (H) 8.4
