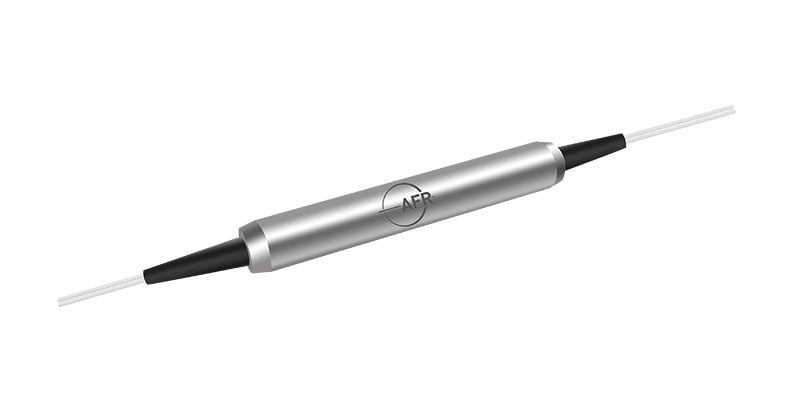

1310/1550 nm Mini Fiber Circulator

The 1310/1550 nm Mini Fiber Circulator provides high isolation, low insertion loss, and low PDL.
  • Product Detail

The Mini Fiber Optic Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The component provides high isolation, low insertion  loss, low PDL, low PMD and excellent environmental stability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, high speed systems and bi-direction communication systems.

Specifications

Parameter

Unit

Type A

Type B

Center Wavelength (λc)

nm

1310 or 1550

Operating Wavelength Range

nm

λc ± 20

Typ. Insertion Loss

dB

0.7

Max. Insertion Loss

dB

0.8

Min. Isolation, 23 ℃

dB

45

Min. Crosstalk

dB

50

Min. Return Loss

dB

55

Max. Polarization Dependent Loss, 23 ℃

dB

0.1

Max. Polarization Mode Dispersion

ps

0.1

Max. Optical Power (Continuous Wave)

mW

300

Max. Tensile Load

N

5

Fiber Type

 -

SMF-28 Fiber

Operating Temperature

- 5 to + 70

Storage Temperature

- 40 to + 85

Package Dimensions

mm

5.5 × 50
