100/200G Polarization Maintaining DWDM

It is designed and manufactured according to Telcordia standard and ITU standard.
  • Product Detail

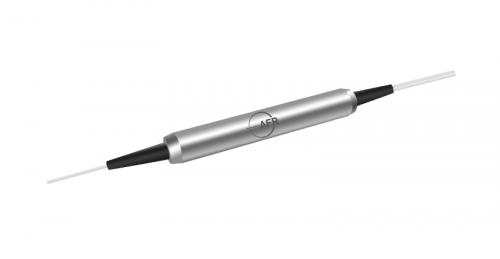

The PMDWDM series is designed and manufactured according to Telcordia standard and ITU standard, it preserves the polarization of optical signals. The devices use environmentally stable thin film filter and advanced packaging technology to achieve wide passband, low insertion loss, high channel isolation, excellent  environmental stability and high extinction ratio. They can be used individually to perform single channel add or drop function or can be used in DWDM systems and fiber sensor systems, etc.

Specifications

Parameter

Unit

Value

Filter Type



200 GHz

100 GHz

Pass Band

Center Wavelength

nm

ITU Grid

Min. Bandwidth @ 0.5 Db

nm

0.5

0.16

Typ. Bandwidth @ 0.5 dB

nm

0.7

0.4

Max. Insertion Loss @ Common→Pass

dB

1.0

1.2

Typ. Insertion Loss @ Common→Pass

dB

0.8

1.0

Min. Channel Isolation @ Common→Pass

dB

25

25

Typ. Channel Isolation @ Common→Pass

dB

30

30

Reflection Band

Max. Insertion Loss @ CommonReflect

dB

0.5

0.5

Typ. Insertion Loss @ Common→Reflect

dB

0.3

0.3

Min. Channel Isolation @ Common→Reflect

dB

12

12

Typ. Channel Isolation @ Common→Reflect

dB

15

15

Typ. Extinction Ratio @ 23 ℃

dB

22

22

Min. Extinction Ratio @ 23 ℃

dB

20

20

Directivity

dB

50

50

Min. Return Loss

dB

50

50

Center Wavelength Stability

 nm/℃

 0.002

Thermal Stability

dB/℃

0.005

Max. Optical Power

mW

300

Fiber Type



PM Panda fiber

Max. Tensile Load

N

5

Operating Temperature

-5 to +70

Storage Temperature

-40 to +85
