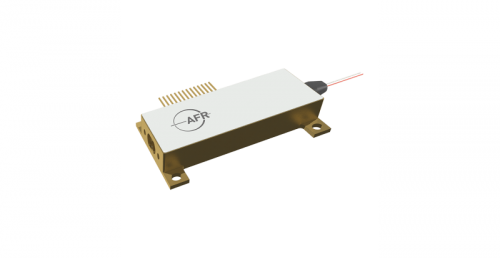

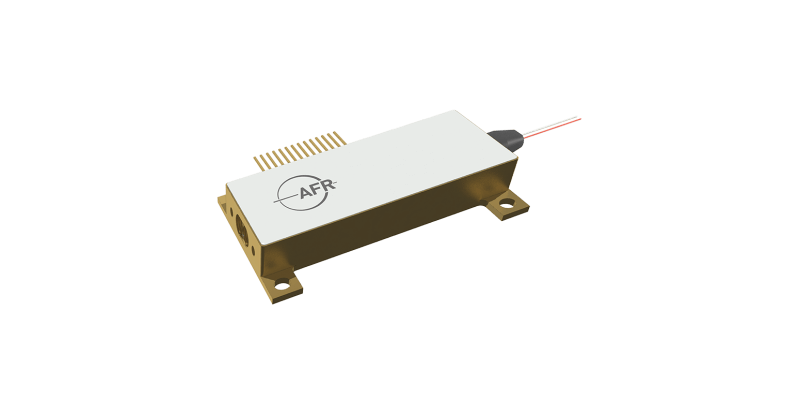

40 GHz TFLN IQ Modulator

The 40G-IQ-XT modulator design is based on a dual parallel structure of 2 Mach-Zehnder modulators embedded in a Mach-Zehnder super-structure. Each internal modulator is designed to have EO bandwidth above 20 GHz. Monitor photodiode is provided for automatic bias control. The 40G-IQ-XT version is provided with an extended operating temperature of - 55 to + 85°C for different environmental applications.

The Polarization Beam Combiner/Splitter is a compact high performance lightwave component that combines two orthogonal polarization signals into one output fiber. The most common application is to combine two pump lasers into one single fiber to double the pump power in EDFA or Raman Amplifier. This Beam Combiner/ Splitter can also be used as a beam splitter.

AFR's MEMS Variable Optical Attenuator is based on an electrostatic drived micro-electro-mechanical-system (MEMS) chip. The MEMS Variable Optical Attenuator chip consists of a tilting mirror to change light coupling between input and output fibers. The components are characterized with low insertion loss, fast response and compact size. The MEMS Variable Optical Attenuator is widely uesd in WDM networks, power control or gain variation in EDFA.

The Twin Isolator integrates two independent isolators into one standard isolator package and is excellently suited for EDFAs or instrumentation designs where two or more isolators are used. The Twin Optical Isolator offers excellent temperature stability, low insertion loss, high isolation, low temperature dependence and great space saving.

The Free Space Isolator Epoxy is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make the optical isolator epoxy flexible to fit with different diode laser packaging requirements.

The Free Space Isolator is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make the optical isolator flexible to fit with different diode laser packaging requirements.

The Polarization Insensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The optical isolator is characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, fiber lasers, transmitters and other fiber optics communication equipment to suppress back reflection and back scattering.

The Polarization Insensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The optical isolator is characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, fiber lasers, transmitters and other fiber optics communication equipment to suppress back reflection and back scattering.
