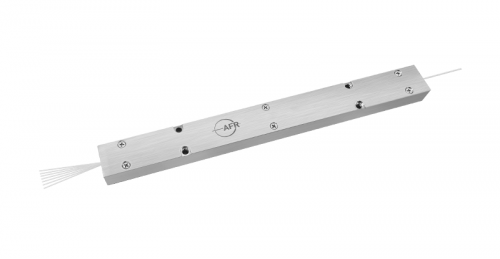

2.5 kW (6+1)×1 Backward Pump Combiner

The 2.5 kW (6+1)×1 Backward Pump Combiner features low signal insertion loss and high coupling efficiency.
  • Product Detail

The High Power (6+1)x1 Backward Pump Combiner enables highly efficient combining of the powers from up to 6 multimode pump diodes into a double cladding output fiber while transfer the kW class signal laser in the reverse direction. Available for different fiber types.

Specifications

Parameter

Unit

Value

Product Type

-

Backward pump (6 + 1) ×1

Pump Wavelength

nm

915

  Signal Wavelength - 1080

Fiber Type for Pump Input

-

MM-S200/220-22A-HP or MM-S220/242-22A-HP

Fiber Type for Signal Input

-

LMA-GDF-20/400-M

  Fiber Type for Signal Output -  LMA-GDF-20/400-M

Max. Signal Insertion Loss

dB

0.3

  Typ. Pump Efficiency % 98.0
Min. Pump Efficiency

%

97.0

Max. Input Pump Power

W

300 × 6

Max. Input Signal Power

W

2500.0

Package Dimensions

mm

150 (L) × 15 (W) × 10 (H)

Operating Temperature

0 to + 65

Storage Temperature

- 40 to + 85
