AFR (1+1)×1 Multimode Pump & Signal Laser Combiner for Fiber Laser, EDFA

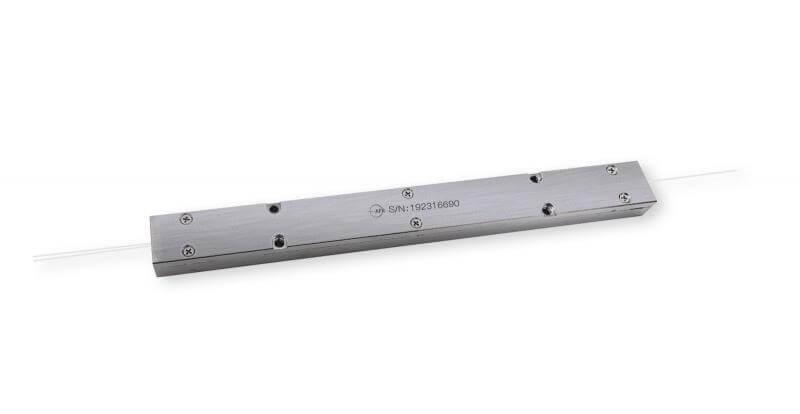

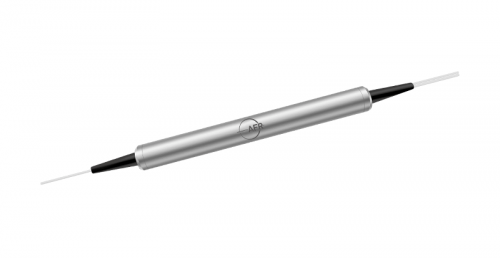

(1+1)×1 Multimode Pump & Signal Combiner

The (1+1)×1 Multimode Pump & Signal Combiner enables highly efficient combining of the powers from 1 multimode pump diode and a signal beam from the signal fiber into a double clad output fiber. The Pump & Signal Combiner is also available for different fiber types.

Inquiry now Download

Product Detail

Key Features	Applications
High Coupling Efficiency	Fiber Laser
Low Insertion Loss	EDFA

Specifications
Parameter	Unit	Value
Product Type	-	(1+1)×1
Pump Wavelength Range	nm	900 - 1000
Signal Wavelength Range	nm	1060
Fiber Type for Input (Pump Channel)	μm	105/125, 0.15 NA or 0.22 NA
Fiber Type for Input (Signal Channel)	μm	6/125 DCF, 10/125 DCF
Fiber Type for Output	μm	6/125 DCF, 10/125 DCF
Signal Channel Insertion Loss	dB	< 0.50
Typ. Pump Efficiency	%	94
Min. Pump Efficiency	%	92
Max. Input Pump Power	W	1 × 10	1 × 30
Package Dimensions	mm	P1: 50 (L) × 5 (W) × 5 (H)	P2: 70 (L) × 12 (W) × 8 (H)
Operating Temperature	℃	0 to + 65
Storage Temperature	℃	- 40 to + 85

¹Mode number summation of all input fibers should be less than that of output fiber.
