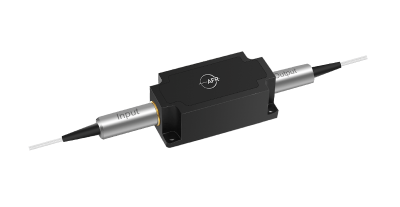

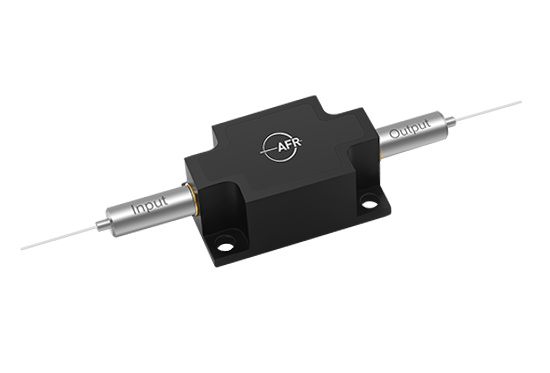

AFR SteadiBeam® 1064 nm 200 W Optical Isolator for High Power Pulse Fiber Lasers

SteadiBeam^® 1064 nm 200 W Isolator

AFR's SteadiBeam® is the best Isolator designed for high power pulsed fiber lasers. Two versions of design are compatible with lasers of 100 W and 200 W respectively. Under multiple patented technologies, the SteadiBeam® isolator delivers unparalleled performance of aberration-free and thermal lensing-free beam quality at any output power level. It also provides high isolation for reflection coming from all spatial angles.

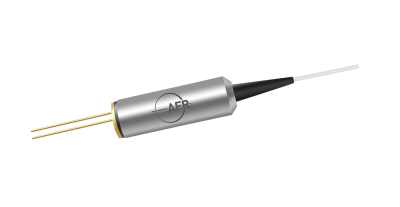

AFR 1064 nm 2 W Optical Isolator for Fiber Laser, Instrumentation Applications

1064 nm 2 W Isolator

The 1064 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber lasers and instrumentation applications.

MEMS Variable Optical Attenuator

AFR's MEMS Variable Optical Attenuator is based on an electrostatic drived micro-electro-mechanical-system (MEMS) chip. The MEMS Variable Optical Attenuator chip consists of a tilting mirror to change light coupling between input and output fibers. The components are characterized with low insertion loss, fast response and compact size. The MEMS Variable Optical Attenuator is widely uesd in WDM networks, power control or gain variation in EDFA.

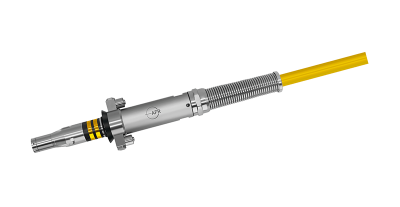

Dragon 20 kW High Power Laser Cable

AFR's Dragon 20 kW Laser Cable provides QBH compatible connector for high power fiber lasers up to 20 kW. Technologies incorporated include cladding mode stripping, indirect water cooling and safety interlock.

APPLICATIONS

APPLICATIONS

For Industrial Lasers
Marking, Metal Cutting, Welding and other Material Processing Fields

Learn More
For Optical Network
High-speed Optical Network, Mobile Network, and other Communication Fields

Learn More
For Fiber Sensing
Petroleum Exploration, Security, Bridges and Buildings

Learn More
For Autonomous Vehicles
Radar Detection Technology

Learn More
For Bio-Medical Equipment
Vision Correction, Prostate Surgery, Heart Bypass Surgery, OCT

Learn More
Test Equipment & Others

Learn More

Latest News

latest news

Apr 07, 2025 AFR Showcased Latest Innovations for Optical Networks at OFC’2025 view more

Apr 02, 2025 AFR 2D FAU with Hermetic Feedthrough Honored by 2025 Lightwave + BTR Innovation Reviews

April 1, 2025 - Advanced Fiber Resources (AFR) announced today that its 2D Fiber Array Unit (FAU), developed by its wholly owned subsidiary Vlink, has been recognized as a high-scoring honoree in the 2025 Lightwave + BTR Innovation Reviews in the Optical Components category.

Award-Winning Product with the Judge’s Comment

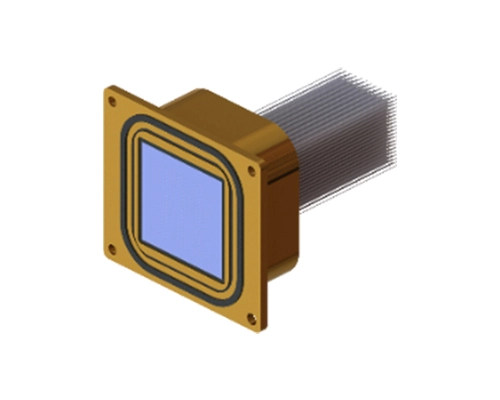

Vlink’s innovative nonlinear 2D FAU developed through specialized design and manufacturing processes. It achieves precise waveguide matching and effectively improves coupling efficiency. This advancement strengthens optical path stability, contributing to higher performance in wavelength selective switching (WSS) applications. Vlink’s 2D FAU integrates a hermetic feedthrough, simplifying sealing requirements and reducing both design complexity and sealing costs for customers.

2025 Lightwave + BTR Innovation Reviews Reception

About Lightwave + BTR Innovation Reviews The Lightwave + BTR Innovation Reviews program recognizes technology developers demonstrating excellence in serving the optical network and broadband communities. Judged by a panel of experts drawn from service providers, technology developers, industry analysis firms, and the media, the program evaluates each entry for originality, innovation, customer impact, its effectiveness in meeting new or existing needs, the novelty of its approach, and cost-efficiency.
Mar 27, 2025 OFC 2025 Forecast: AFR Demonstrates 400 Gbps/lane TFLN Modulator Chip for PAM-4 Transmission

Advanced Fiber Resources (AFR) is set to demonstrate its 400 Gbps/lane thin-film lithium niobate (TFLN) modulator chip at OFC, which will be held at Moscone Center, San Francisco, California, April 1 – 3, 2025. Engineered for PAM-4 transmission systems, the chip is capable of transmission up to 1.6 Tbps with DR4/FR4, or 3.2 Tbps with DR8/FR8. Compared to other optoelectronic materials such as indium phosphide, silicon photonics, and traditional lithium niobate, the TFLN modulator features high bandwidth, low Vπ, low insertion loss, high extinction ratio, excellent linearity, and compact size, potentially capable of being implemented into pluggable transceivers or CPOs for data centers and AI clusters.

For more product information please contact sales@fiber-resources.com , or visit AFR booth# 5657 at OFC 2025.
Mar 26, 2025 AFR Announces Volume Shipment of TFLN Coherent Driver Modulators to Global Tier-1 Customers

Advanced Fiber Resources (AFR) is honored to announce volume shipment of 96 GBaud and 130 GBaud TFLN coherent driver modulators (CDMs) to global tier-1 customers. Both products are based on thin film lithium niobate (TFLN) technology, featuring baud rates of 96G and 130G, dual-polarization multiplexing, low insertion loss, low modulation loss, in compact OIF-compatible packages, and can be used in DP-QPSK, DP-16-QAM and DP-64-QAM modulation formats, for long-haul, metro and DCI coherent transmissions up to 1600 Gbps. In particular, both products can be used in C + L wavelength range with a single device, helping customers to save significantly in component and system level costs.

For more product information please contact sales@fiber-resources.com , or visit AFR booth# 5657 at OFC 2025.
