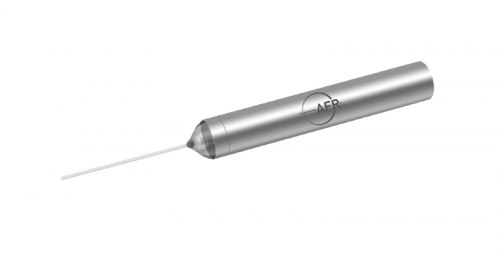

1064 nm Polarization Maintaining Single Fiber Collimator

The 1064 nm Polarization Maintaining Single Fiber Collimator has high extinction ratio, low insertion and high return loss.

Inquiry now Download

Product Detail

The 1064 nm PM Fiber Collimator is a basic element for in-line PM fiber optics components, such as PM isolator and PM FWDM. It has high extinction ratio, low insertion loss and high return loss. The unique processing and high quality AR coating also enable this PM fiber collimator to handle high laser power.

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Operating Wavelength Range	nm	λc ± 30
Working Distance	mm	5 or specify
Typ. Insertion Loss	dB	0.25
Max. Insertion Loss	dB	0.30
Typ. Extinction Ratio	dB	25
Min. Extinction Ratio	dB	23
Min. Return Loss	dB	55
Max.Optical Power (Continuous Wave)	mW	300
Max. Tensile Load	N	5
Fiber Type	-	PM 980 Panda Fiber
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85
