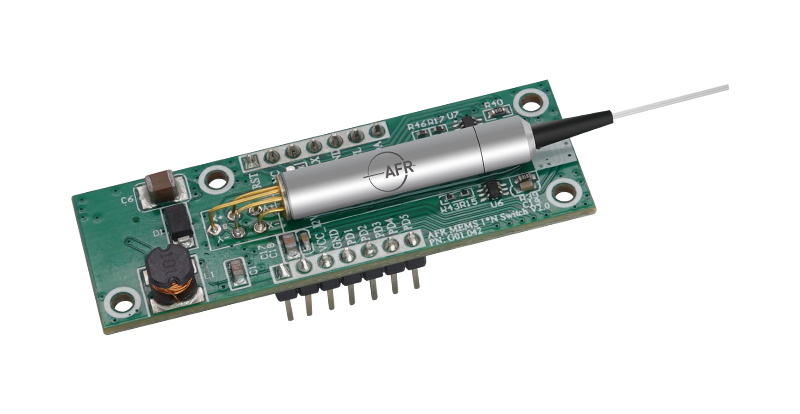

1 × 4 MEMS Switch

AFR's MEMS Optical Switch is based on an electrostatic drived micro-electro-mechanical-system (MEMS) chip. The MEMS chip consists of a tilting mirror to change light coupling between input and output fibers.The components are characterized with low insertion loss, high return loss, excellent environmental stability and reliability. The optical swtich has been widely used in fiber optics communication equipment, fiber instruments, and fiber sensing to switch channels.

Inquiry now Download

Product Detail

Key Features	Applications
Durability and Reliability	Fiber Optics Communication
Compact Size	Fiber Instruments
Fast Switching Time	Fiber Sensing
	Incoherent Wind Lidar

Specifications
Parameter	Unit	Value
Operating Wavelength Range	nm	1530 - 1570
Max. Insertion Loss	dB	1.0
Min. Channel Crosstalk	dB	50
Repeatability	dB	± 0.02
Max. Polarization Dependence Loss	dB	0.1
Max. Polarization Mode Dispersion	ps	0.1
Drive Protoco	-	TTL
Min. Return Loss	dB	50
Max. Switch Time	ms	20
Drive Voltage	V	5~12
Min. Durability	cycle	1 billion
Max. Operating Power Handling	mW	500
Max. Temperature Dependence Loss	dB	0.3
Max. Wavelength Dependence Loss	dB	0.3
Switch Type	-	Non-Latching
Fiber Type	-	SMF-28 Fiber
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85
Package Dimensions	mm	20 × 58 × 16

¹IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
