Key Features | Applications |
Low Insertion Loss | Fiber Lasers |
High Isolation | Fiber Optic Instruments |
Parameter | Unit | Value |

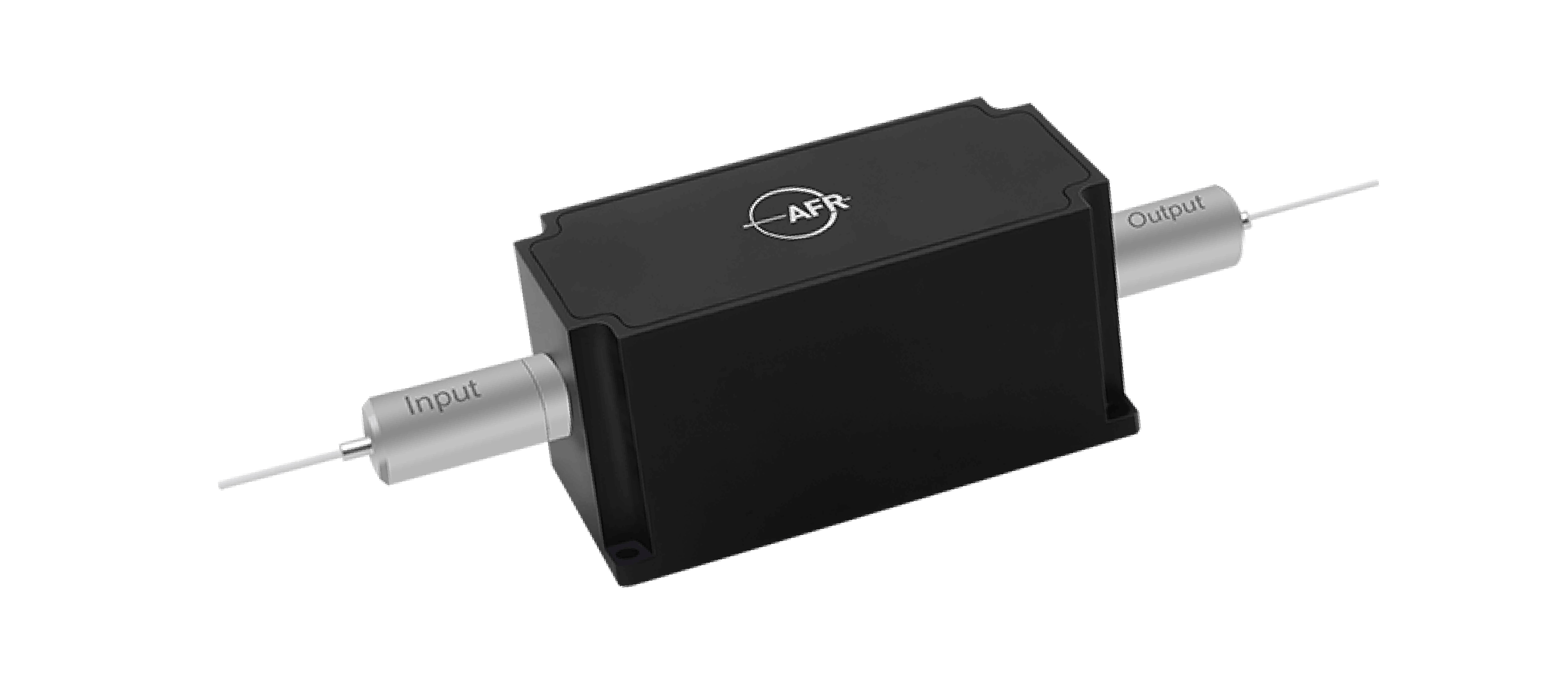

Center Wavelength (λc) | nm | 980 |
Operating Wavelength Range | nm | λc ± 10 |
Typ. Peak Isolation | dB | 30 |
Min. Isolation, λc, @ All Polarization States, 23 ℃ | dB | 25 |
Typ. Insertion Loss, 23 ℃ | dB | 0.8 |
Max. Insertion Loss, 23 ℃ | dB | 1 |
Min. Return Loss (Input/Output) | dB | 45/45 |
Max. Polarization Dependent Loss | dB | 0.2 |
Max. Average Optical Power | W | 20 |
Max. Peak Power (Pulse Width, 10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | HI1060 |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
