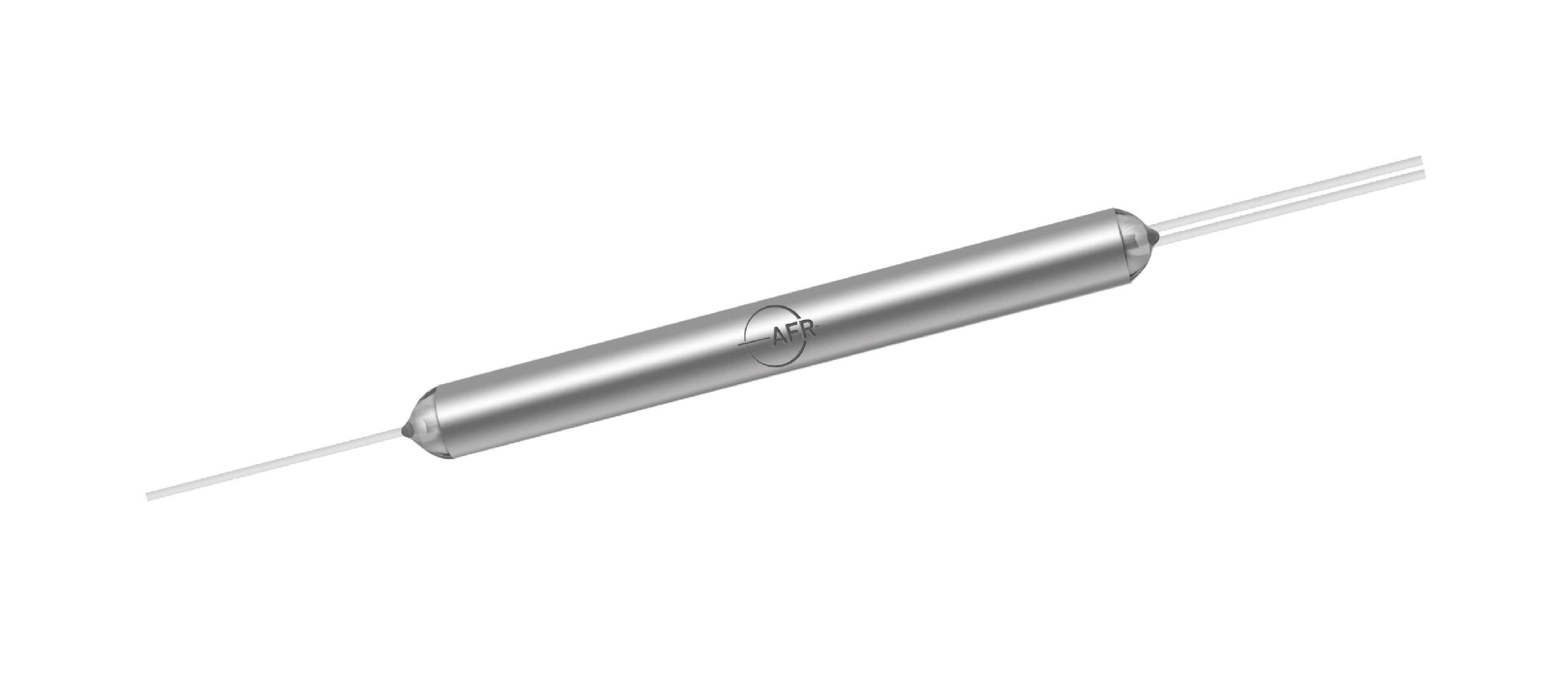

980 nm Filter WDM

980 nm Filter WDM

The Filter Wavelength Division Multiplexer is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelengths in a wide wavelength range. The FWDM offers very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.
Product Detail

Key Features

Applications

Low Insertion Loss

EDFA

Low PDL

Raman Amplifier

Specifications
ParameterUnitValue
Pass Band           Wavelength Rangenm980 ± 10
                             Max. Insertion LossdB0.7
                             Min. IsolationdB25
Reflection Band   Wavelength Rangenm1060 ± 40
                             Max. Insertion LossdB0.6
                             Min. IsolationdB12
Min. Return LossdB50
Max. Polarization Dependent Loss  dB0.1
Thermal StabilitydB/℃0.005
Max. Optical Power (Continuous Wave)mW300
Max. Tensile LoadN5
Fiber Type-HI 1060 Fiber
Operating Temperature  ℃- 5 to + 70
Storage Temperature℃- 40 to + 85


1IL is 0.5 dB higher, RL is 5 dB lower for each connector added.
