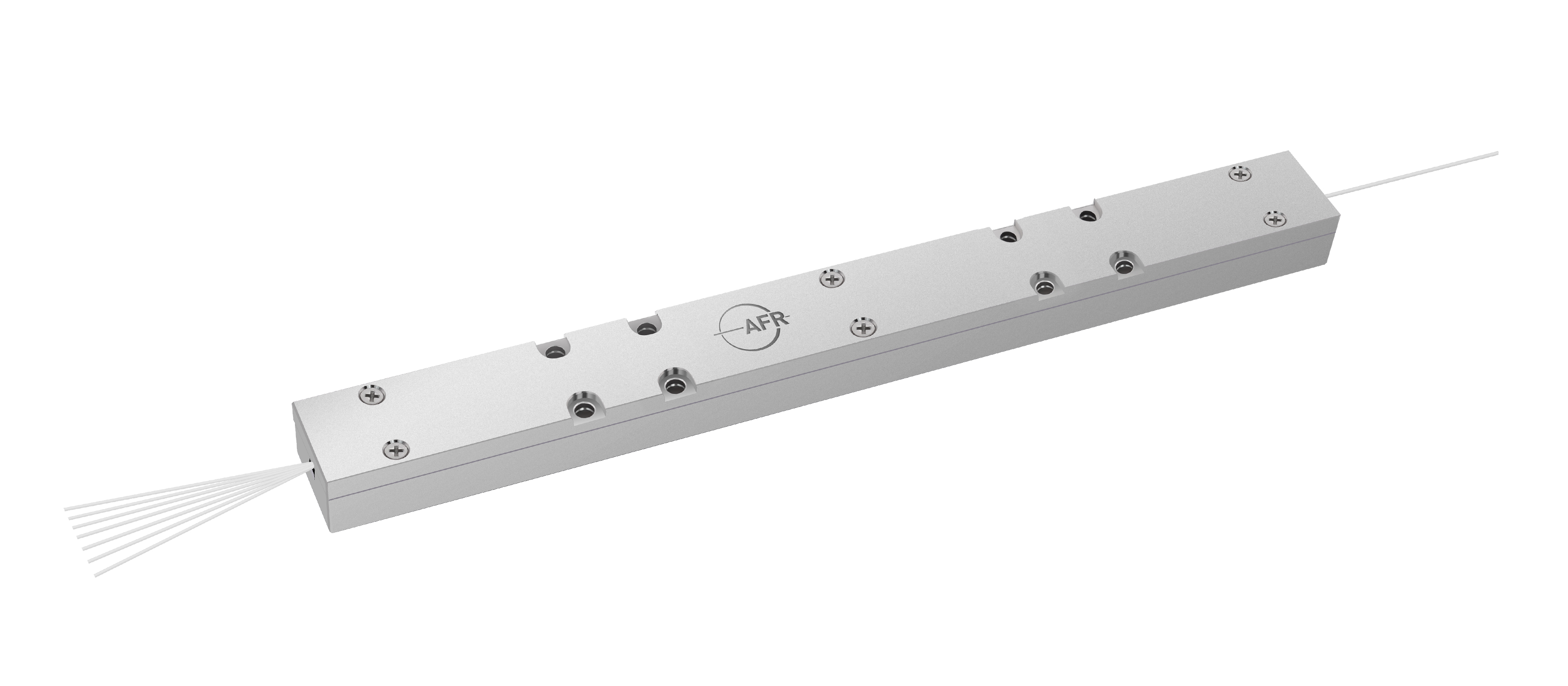

High Power Backward (6+1)×1 Pump & Signal Combiner

The High Power (6+1)×1 Backward Pump & Signal Combiner enables highly efficient combining of the powers from up to 6 multimode pump diodes into a double clad fiber.Meanwhile, it can transmit 1000W signal power with extremely low insertion loss from the opposite direction of the pump light. Available for different fiber types.

Inquiry now Download

Product Detail

Key Features	Applications
High Power Handling	High Power Fiber Laser
High Coupling Efficiency
Proprietary Fiber Tapering Technique

Specifications

Parameter	Unit	Value
Product Type	—	Backward (6+1)×1
Pump Wavelength	nm	793
Signal Wavelength	nm	2000
Fiber Type for Pump Input	—	200/220DCF 0.22NA
Fiber Type for Signal Input	—	25/400DCF 0.09/0.46NA
Fiber Type for Signal Output	—	25/400DCF 0.09/0.46NA
Max. Input Pump Power¹	W	6 × 300
Max. Input Signal Power (Average)²	W	1000
Max. Backward Cladding Power³	W	100
Max. Signal Insertion Loss⁴	dB	0.4
Min. Pump Efficiency⁵	%	97
Package Dimensions	mm	150 (L) × 15 (W) × 11 (H)
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹Testing by 1800W 976nm Pump.(95% Power NA ≈0.18)

²Without testing.Design guarantee.

³Testing by 100W backward Cladding Power Pump.

⁴Testing by mW class 2000nm Light source.

⁵Testing by 10W Pump.(95% Power NA ≈0.18)
