Key Features | Applications |
Low Insertion Loss | Fiber Optic Instruments |
High Isolation | EDFA, CATV, WDM Networks |
Parameter | Unit | Value | |
Center Wavelength (λc) | nm | 1310/1550 | 1480/1550 |
Operation Wavelength | nm | λc ± 15 | λc ± 5 |
Min. Isolation | dB | 17 | 13 |
Max. Insertion Loss1 | dB | 0.20 | 0.35 |
Max. Polarization Dependent Loss | 0.1 | 0.2 | |
Thermal Stability | ≤ 0.002 over - 5 to + 70 ℃ | ||
Min. Return Loss2 | dB | 60 | |
Directivity | dB | 60 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Fiber Type | - | SMF-28 Fiber | |

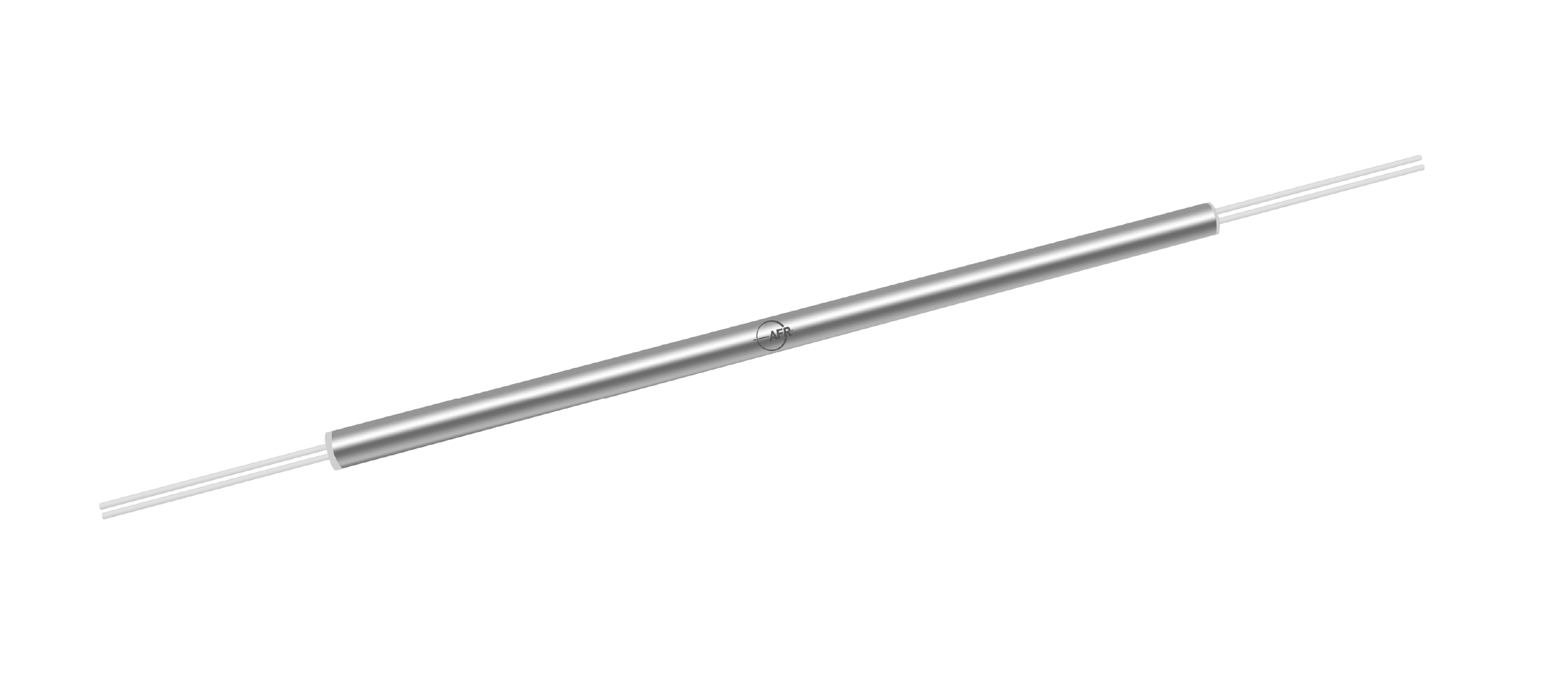

Package Dimensions | 250 μm Bare Fiber, Ø 3.0 × 40 mm for 1310/1550 | ||
(3.0 × 55 mm for 1480/1550) | |||
900 μm Loose Tube, Ø 3.0 × 56 mm for 1310/1550 | |||
(3.0 × 72 mm for 1480/1550) | |||
3 mm Cable, 90 × 16 × 9 mm | |||
Operating Temperature | ℃ | - 5 to + 70 | |
Storage Temperature | ℃ | - 40 to + 85 | |
1IL is 0.3 dB higher for each connector added.
2RL is 5 dB lower for connector added.
