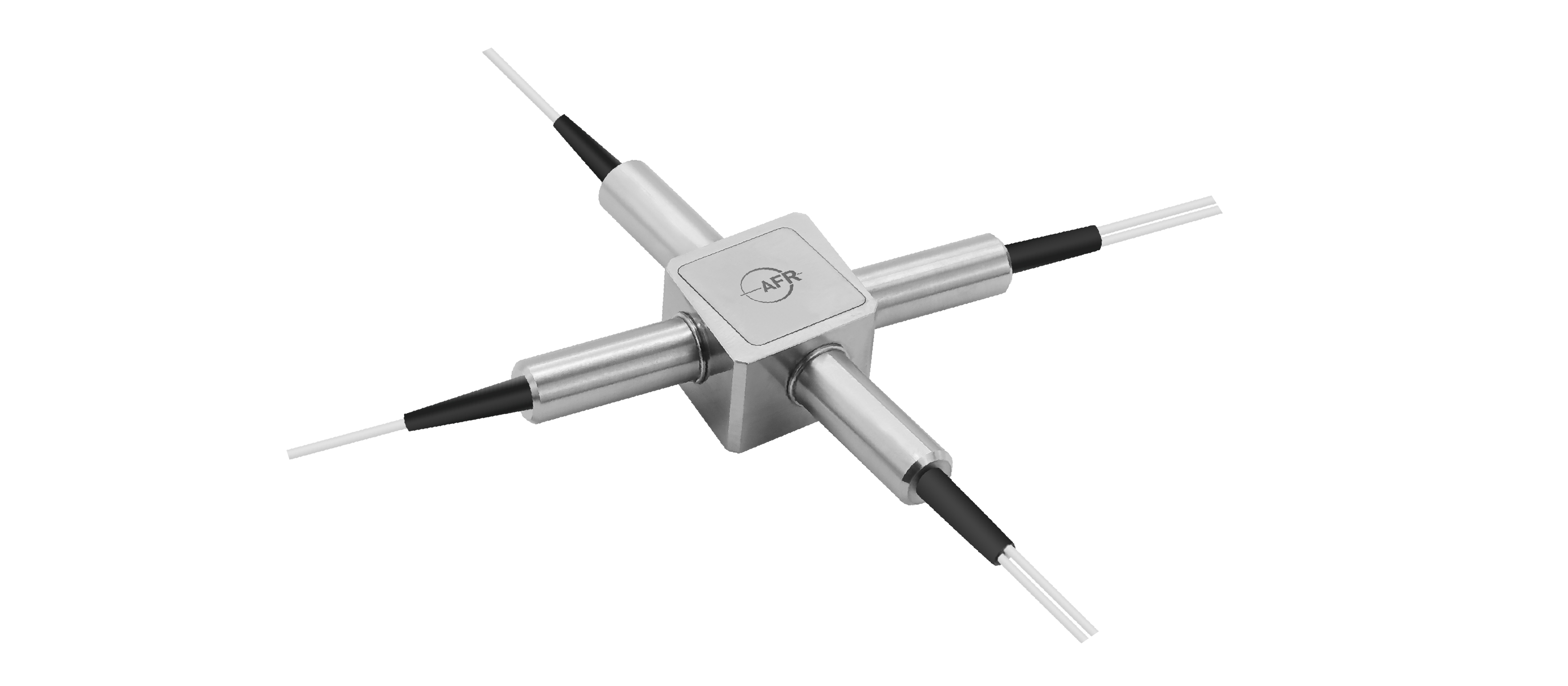

2 μm Polarization Beam Combiner/Splitter

The 2 μm Polarization Beam Combiner/Splitter is a compact high performance lightwave component that combines two orthogonal polarization signals into one output fiber. The most common application is to combine the light of two pump lasers into one single fiber to double the pump power in EDFA or Raman Amplifier. The 2 μm Polarization Beam Combiner can also be used as a beam splitter.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	EDFA
	Raman Amplifier

Specifications

Parameter	Unit	Value
Grade	-	Grade P	Grade A
Center Wavelength (λc)	nm	2000
Operating Wavelength Range	nm	λc ± 40
Typ. Insertion Loss	dB	0.6	0.8
Max. Insertion Loss	dB	1.1	1.4
Min. Extinction Ratio, 23 ℃ (for Splitter Only)	dB	20	18
Min. Return Loss	dB	50
Min. Directivity	dB	50
Max. Optical Power (Continuous Wave)	mW	500
Fiber Type	-	PM 1550 Panda Fiber for Ports 1 & 2
	-	SMF-28 or PM 1550 Panda Fiber for Port 3
Max. Tensile Load	N	5
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
